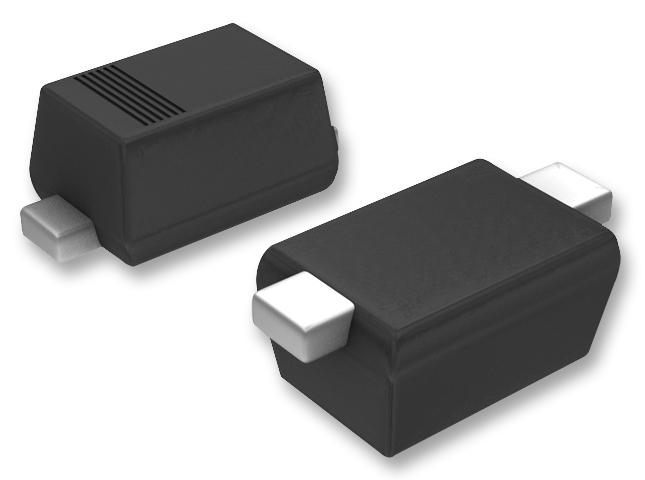

RB541SM-40FHT2R
NRNDRohm Semiconductor
DIODE SCHOTTKY 40V 200MA 2-PIN SOD-523 EMBOSS T/R
RB541SM-40FHT2R
NRNDRohm Semiconductor
DIODE SCHOTTKY 40V 200MA 2-PIN SOD-523 EMBOSS T/R
Description
General part information
RB541SM-40FHT2R
DIODE SCHOTTKY 40V 200MA 2-PIN SOD-523 EMBOSS T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | RB541SM-40FHT2R |
|---|---|
| Current - Average Rectified (Io) | 200 mA |
| Current - Reverse Leakage | 100 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 125 °C |
| Package / Case | SOD-523, SC-79 |
| Package Name | EMD2 |
| Qualification | AEC-Q101 |
| Speed | Any Speed, Small Signal |
| Speed - Fast Recovery (Maximum) | 200 mA |
| Speed - Small Signal Current Max | 200 mA, 200 mA, 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) | 610 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
