General part information

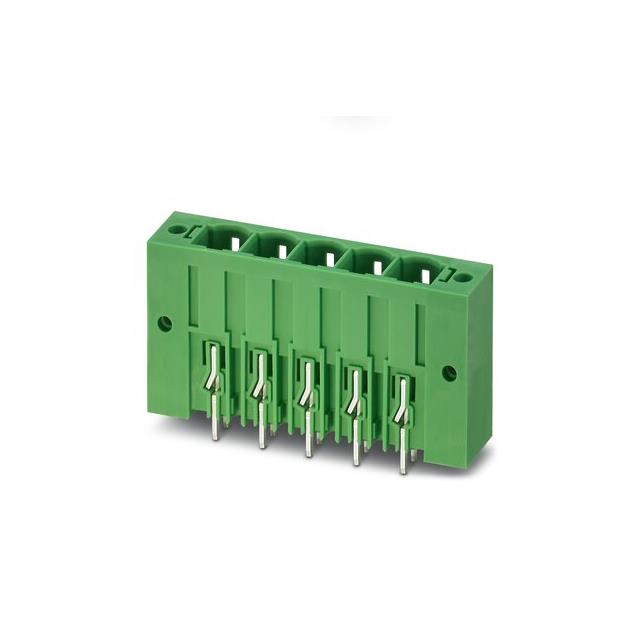

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1998894 | PCV Series |
|---|---|---|
| Color | Green | Green |
| Contact Mating Finish | Silver | Silver |
| Contact Tail Length | 0.157 in | 0.157 in |
| Contact Tail Length | 4 mm | 4 mm |
| Current - IEC | 76 A | 76 A |
| Current - UL | 66 A | 66 A |
| Features | Mating and Mounting Flange | Mating and Mounting Flange |
| Header Orientation | Vertical | Vertical |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 1.339 " | 1.339 " |
| Insulation Height | 34 mm | 34 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 10.16 mm | 10.16 mm |
| Pitch [x] | 0.4 in | 0.4 in |
| Positions Per Level | 5 | 5 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 1 kV | 1 kV |
| Voltage - UL | 300 V | 300 V |
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
| Part | Header Orientation | Pitch [x] | Pitch [x] | Insulation Height | Insulation Height | Contact Mating Finish | Voltage - UL | Features | Material Flammability Rating | Mounting Type | Number of Levels | Positions Per Level | Contact Tail Length | Contact Tail Length | Housing Material | Current - IEC | Current - UL | Type | Color | Termination Style | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1998894 | Vertical | 10.16 mm | 0.4 in | 1.339 " | 34 mm | Silver | 300 V | Mating and Mounting Flange | UL94 V-0 | Through Hole | 1 | 5 | 0.157 in | 4 mm | Polyamide (PA), Nylon | 76 A | 66 A | Header, Male Pins, Shrouded (4 Side) | Green | Solder | 1 kV |
Phoenix Contact 1998810 | Vertical | 10.16 mm | 0.4 in | 1.339 " | 34 mm | Silver | 300 V | UL94 V-0 | Through Hole | 1 | 5 | 0.157 in | 4 mm | Polyamide (PA), Nylon | 76 A | 66 A | Header, Male Pins, Shrouded (4 Side) | Green | Solder | 1 kV |
