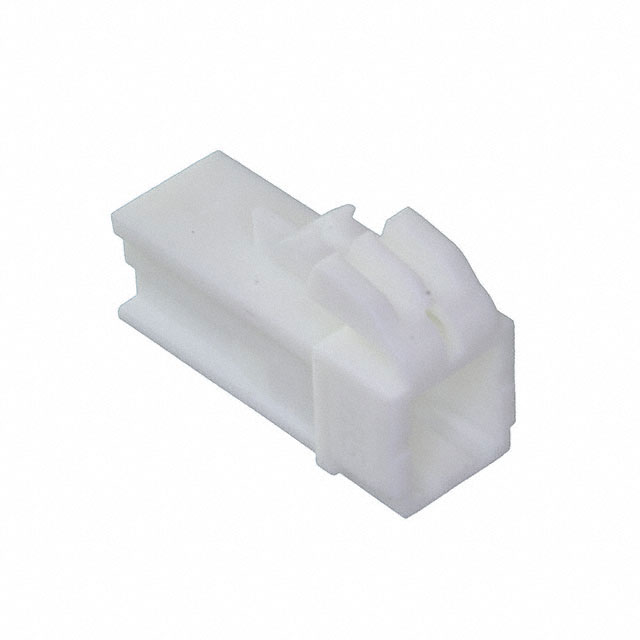

Specification	DF22-1S-7.92C(28)

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C

DF22 Series

Part	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Shrouding	Insulation Height	Number of Positions	Insulation Material	Material Flammability Rating	Fastening Type	Contact Type	Current Rating	Contact Finish - Mating	Connector Type	Pitch - Mating	Contact Material	Features	Mounting Type	Style	Voltage Rating	Contact Length - Post	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Termination	Contact Finish - Post	Color	Pitch	Contact Termination	Note	Contact Finish Thickness - Mating	Mated Stacking Height Options
Hirose Electric Co Ltd DF22-2P-7.92DS	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.48 in	2	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	25 A	Tin-Lead	Header	0.312 in	Copper Alloy	Board Guide	Right Angle Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All	Beige	Solder
Hirose Electric Co Ltd DF22-2P-7.92DS(36)	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.48 in	2	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	25 A		Header	0.312 in	Copper Alloy	Board Guide	Right Angle Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All		Solder
Hirose Electric Co Ltd DF22-3P-7.92DS(75)	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.48 in	3	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	25 A	Tin	Header	0.312 in	Copper Alloy	Board Guide	Right Angle Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All	Beige	Solder	Tin
Hirose Electric Co Ltd DF22-3S-7.92C(28)		85 °C	-55 °C	1			3	Nylon Polyamide (PA)		Latch Lock	Female Socket			Receptacle			Polarizing Key	Free Hanging (In-Line)									White	0.312 in	Crimp	Contacts Not Included
Hirose Electric Co Ltd DF22-5S-7.92C				1			5			Latch Lock	Female Socket			Receptacle			Polarizing Key	Free Hanging (In-Line)									White	0.312 in	Crimp	Contacts Not Included
Hirose Electric Co Ltd DF22-2P-7.92DSA(05)	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.713 in	2	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	25 A	Tin-Copper	Header	0.312 in	Copper Alloy	Board Guide	Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All	Beige	Solder						39.4 µin	25.7mm 28.7mm
Hirose Electric Co Ltd DF22-2S-7.92C				1			2			Latch Lock	Female Socket			Receptacle			Polarizing Key	Free Hanging (In-Line)									White	0.312 in	Crimp	Contacts Not Included
Hirose Electric Co Ltd DF22-3P-7.92DSA(35)	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.713 in	3	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	25 A	Tin	Header	0.312 in	Copper Alloy	Board Guide	Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All	Beige	Solder	Tin						25.7mm 28.7mm
Hirose Electric Co Ltd DF22-4P-7.92DS(53)	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.48 in	4	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	22 A	Gold	Header	0.312 in	Copper Alloy	Board Guide	Right Angle Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All	Beige	Solder	Gold
Hirose Electric Co Ltd DF22-1P-7.92DSA(25)	Square	85 °C	-35 °C	1	Shrouded - 4 Wall	0.713 in	1	Nylon Polyamide (PA)	UL94 V-0	Latch Holder	Male Pin	30 A	Tin	Header		Copper Alloy	Board Lock	Through Hole	Board Cable/Wire	1000 V	0.146 in	0.354 in	All	Beige	Solder	Tin						25.7mm 28.7mm
