LMR-400-SF-TF(QTY:50ft)
ActiveMcGill Microwave Systems
LMR 400 CABLE ASSY 50FT SF TO T
LMR-400-SF-TF(QTY:50ft)
ActiveMcGill Microwave Systems
LMR 400 CABLE ASSY 50FT SF TO T
Description
General part information
LMR-400-SF-TF(QTY:50ft)

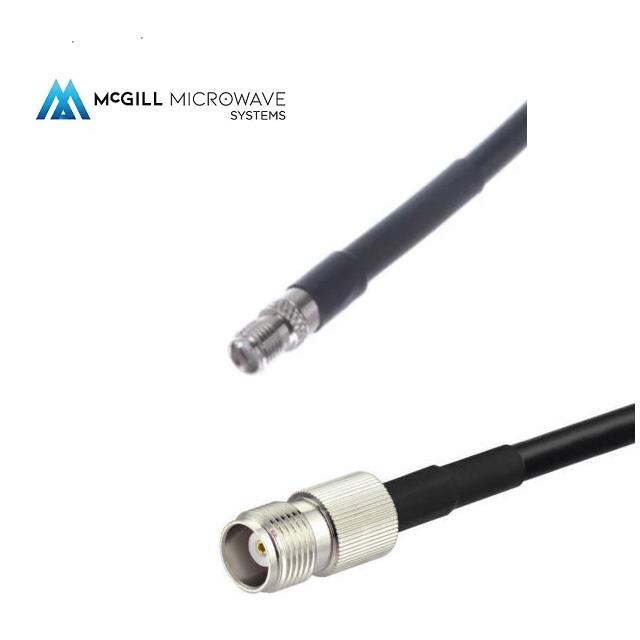

Cable Assembly Coaxial SMA to TNC LMR 400 600.0" (15.2m) 50.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-SF-TF(QTY:50ft) |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Frequency - Max | 8 GHz |
| Length | 15.24 m |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
