Description
General part information
BES01WT

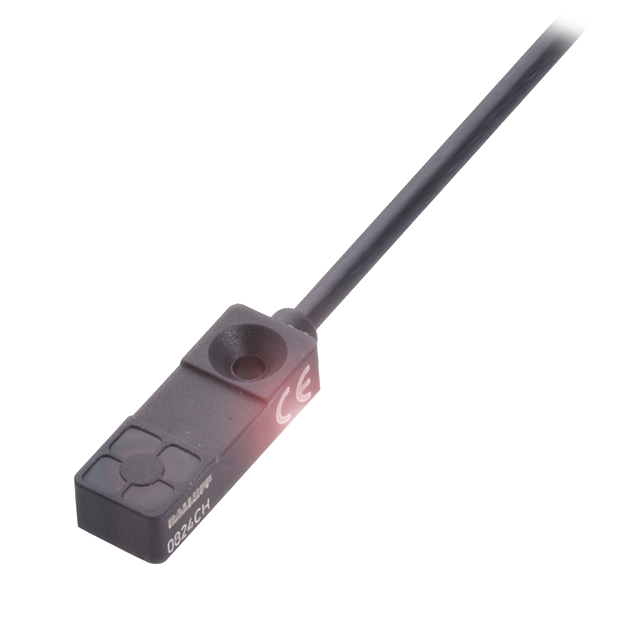

SENSOR PROX INDUCTIVE 3MM MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | BES01WT |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polyamide (PA), Glass Filled |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance | 0.118 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
