000-79075

Active

AMPHENOL RF

CONN TNC PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

000-79075

Active

AMPHENOL RF

CONN TNC PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-79075	000-79 Series

Adapter Series	-	TNC to TNC, N to TNC, BNC to TNC, Twinaxial to Twinaxial
Adapter Type	-	Jack to Jack, Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Silver	Silver, Gold
Center Gender	-	Female to Female
Connector Style	TNC	TNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Conversion Type	-	Same Series, Between Series
Convert From (Adapter End)	-	TNC Jack, Female Socket, N Jack, Female Socket, Twinaxial Jack, Female Socket
Convert To (Adapter End)	-	Female Socket, TNC Jack, TNC Plug, Male Pin, BNC Jack, Twinaxial Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock, Threaded
Frequency - Max [Max]	11 GHz	4 - 500 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Impedance	-	Non-Constant
Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp, 1 Nut, 1 Lockwasher
Ingress Protection	Weatherproof	Weatherproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Clamp	Clamp
Style	-	Straight, Right Angle
Voltage Rating	500 V	500 V

000-79 Series

CONN TNC PLUG STR 50 OHM SOLDER

Part	Center Contact Plating	Mounting Type	Contact Termination	Includes	Connector Style	Frequency - Max [Max]	Impedance	Center Contact Material	Ingress Protection	Connector Type	Voltage Rating	Number of Ports	Mating Cycles	Shield Termination	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Body Material	Body Finish	Dielectric Material	Mounting Feature	Adapter Type	Style	Adapter Series	Center Gender	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Fastening Type	Impedance
AMPHENOL RF 000-79875	Silver	Free Hanging (In-Line)	Solder	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	TNC	4 GHz	50 Ohms	Brass	Weatherproof	Male Pin, Plug	500 V	1	500	Clamp	Silver	85 °C	-40 °C	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Brass	Nickel	Polytetrafluoroethylene (PTFE)
AMPHENOL RF 000-79100	Silver			1 Connector, 1 Lockwasher, 1 Nut		11 GHz	50 Ohms	Beryllium Copper					500			165 °C	-65 ░C		Brass	Nickel	Polytetrafluoroethylene (PTFE)	Bulkhead	Jack to Jack	Straight	TNC to TNC	Female to Female	Female Socket, TNC Jack	TNC Jack, Female Socket	Same Series
AMPHENOL RF 000-79825	Silver	Free Hanging (In-Line)				11 GHz	50 Ohms	Beryllium Copper								165 °C	-65 ░C		Brass	Nickel	Polytetrafluoroethylene (PTFE)		Plug to Jack	Straight	N to TNC		Male Pin, TNC Plug	Female Socket, N Jack	Between Series
AMPHENOL RF 000-79675	Silver	Free Hanging (In-Line)				4 GHz	50 Ohms	Beryllium Copper								165 °C	-65 ░C		Brass	Nickel	Polytetrafluoroethylene (PTFE)		Plug to Jack	Straight	BNC to TNC		BNC Jack, Female Socket		Between Series	Bayonet Lock, Threaded
AMPHENOL RF 000-7925-RFX				1 Connector, 1 Lockwasher, 1 Nut		500 MHz										165 °C	-65 ░C		Brass	Nickel		Bulkhead	Jack to Jack	Straight	Twinaxial to Twinaxial	Female to Female	Female Socket, Twinaxial Jack	Twinaxial Jack, Female Socket	Same Series		Non-Constant
AMPHENOL RF 000-79075	Silver	Free Hanging (In-Line), Right Angle	Solder	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket	TNC	11 GHz	50 Ohms	Beryllium Copper	Weatherproof	Male Pin, Plug	500 V	1	500	Clamp	Silver	85 °C	-40 °C	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Brass	Nickel	Polytetrafluoroethylene (PTFE)
AMPHENOL RF 000-79125	Silver	Free Hanging (In-Line), Right Angle				11 GHz	50 Ohms	Beryllium Copper					500			85 °C	-40 °C		Brass	Nickel	Polytetrafluoroethylene (PTFE)		Plug to Jack	Right Angle	TNC to TNC		Male Pin, TNC Plug	TNC Jack, Female Socket	Same Series
AMPHENOL RF 000-79125-RFX	Gold	Free Hanging (In-Line), Right Angle				11 GHz	50 Ohms	Brass, Phosphor Bronze					500			165 °C	-65 ░C		Brass	Nickel	Polytetrafluoroethylene (PTFE)		Plug to Jack	Right Angle	TNC to TNC		Female Socket, TNC Jack		Same Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.99
		10	$ 83.49
		25	$ 80.28
		50	$ 77.61
		100	$ 73.33

Description

General part information

000-79 Series

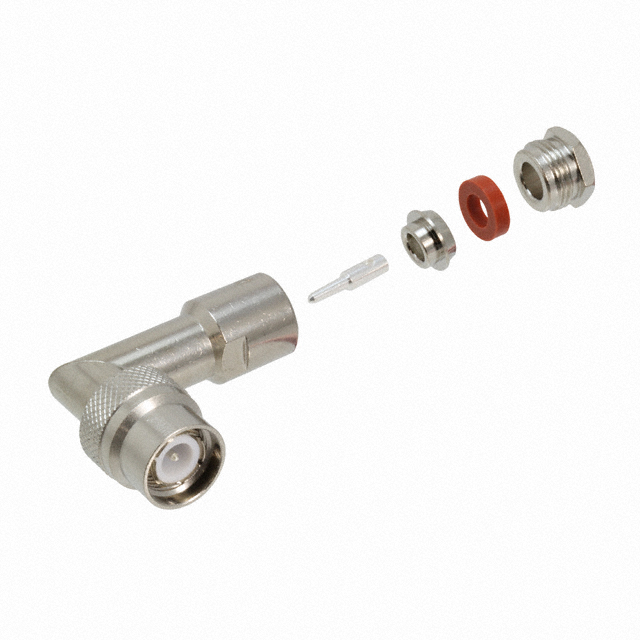

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
