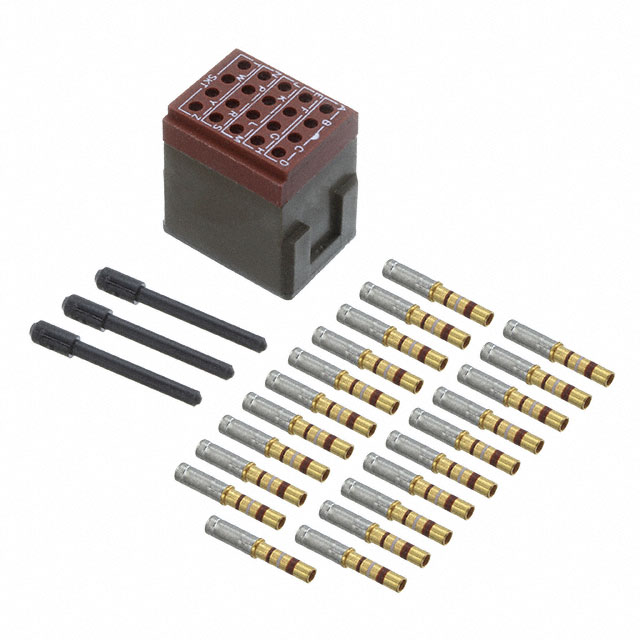

CTJ122E02D-513

Active

TE Connectivity Raychem Cable Protection

TERMINAL JUNCTION SKT 20 POS ST CABLE MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

TERMINAL JUNCTION SKT 20 POS ST CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Module Capacity	Contact Size	Size / Dimension [z]	Size / Dimension [y]
TE Connectivity Raychem Cable Protection CTJ720E01B-513 [V003]	Ground Block	0.58 "	14.73 mm	0.74 in	18.8 mm	0.955 "	24.26 mm	1	20
TE Connectivity Raychem Cable Protection CTJ-3A-04-4032	Rail					2.072 in	52.63 mm
TE Connectivity Raychem Cable Protection CTJ420E114-513 [V003]	Module	0.672 in	17.07 mm	1.02 "	25.91 mm	1.17 in	29.72 mm	114	20
TE Connectivity Raychem Cable Protection CTJ122E05E [V001]	Feedback Module Block	0.76 "	19.3 mm	0.51 in	12.95 mm	0.672 "	17.07 mm	5	22
TE Connectivity Raychem Cable Protection CTJ620E12N [V003]	Module	0.51 in	12.95 mm	0.652 in	16.56 mm	0.865 in	21.97 mm	12	20
TE Connectivity Raychem Cable Protection CTJ420E333-513	Module	0.672 in	17.07 mm	1.02 "	25.91 mm	1.17 in	29.72 mm	333	20
TE Connectivity Raychem Cable Protection CTJ620E06N-1050	Module	0.36 in		0.53 in		0.865 in	21.97 mm	6	20	9.14 mm	13.46 mm
TE Connectivity Raychem Cable Protection CTJ620E121-1050	Module							12	20
TE Connectivity Raychem Cable Protection CTJ-3D-12-4021	Rail					6.216 in	157.89 mm
TE Connectivity Raychem Cable Protection CTJ420E114-513	Module	0.672 in	17.07 mm	1.02 "	25.91 mm	1.17 in	29.72 mm	114	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Feedback Module, -85 – 392 °C [-85 – 392 °F], DEUTSCH CTJ, Terminal Junction Modules

Technical documentation and resources
