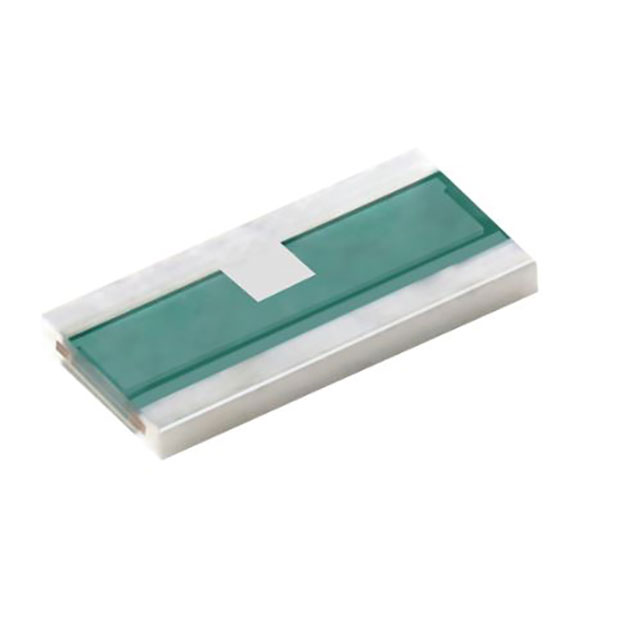

VLP-R003-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.03,
VLP-R003-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.03,
Description
General part information
VLP-R003-1.0
3 mOhms ±1% 2W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | VLP-R003-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 2010 (5025 Metric) |
| Package Name | 2010 |
| Power (Watts) | 2 w |
| Resistance | 3 mOhms |
| Size / Dimension Length | 0.2 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
