1422664
ActivePhoenix Contact

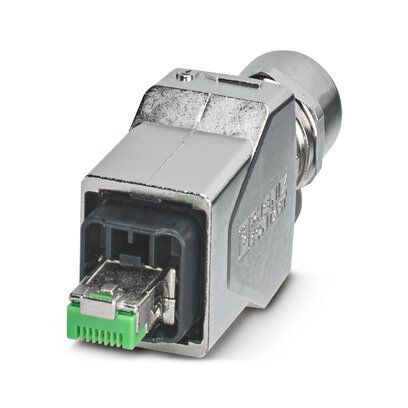

PUSH-PULL CONNECTOR (VERSION 14)
1422664
ActivePhoenix Contact
PUSH-PULL CONNECTOR (VERSION 14)
Description
General part information
1422664
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5 IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422664 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 1.75 A |
| Housing Material | Zinc Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 0.31 ft |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat5 |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 23 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
