Specification	53112037

Color	Silver
Ingress Protection Description	Water Resistant, Dust Tight, 12, 6, Waterproof; NEMA 1, 4
Ingress Protection IP Rating	IP69, IP68
Material	Nickel Plated, Brass
Outside Cable Diameter (Max)	0.669 in
Outside Cable Diameter (Min)	0.354 in
Thread Length	0.591 in
Thread Size (Diameter)	0.75 in
Thread Type	NPT

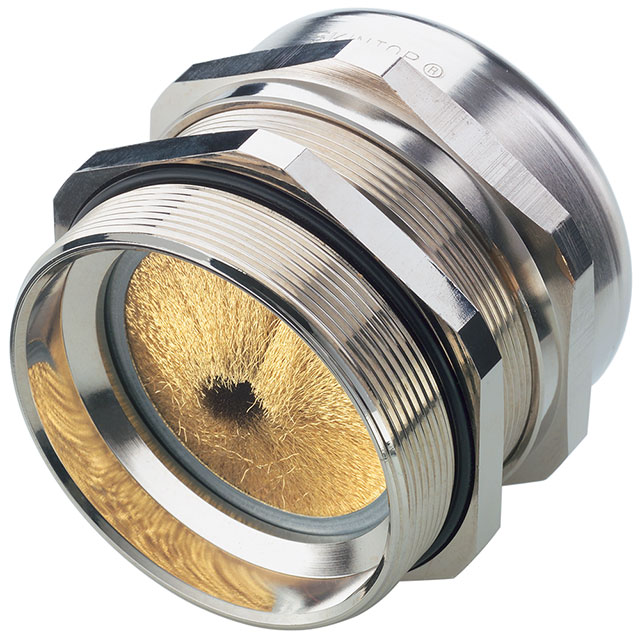

Type	Cable Gland

53112 Series

Part	Thread Size	Includes	Outside Cable Diameter (Min)	Ingress Protection IP Rating	Ingress Protection Description	Thread Length	Operating Temperature (Max)	Operating Temperature (Min)	Outside Cable Diameter (Max)	Type	Material	Color	Panel Hole Size	Thread Diameter	Thread Pitch	Thread Size (Diameter)	Thread Type	Ingress Protection
LAPP 53112260	PG29	O-Ring	0.63 in	IP68	Dust Tight Waterproof	0.315 in	100 °C	-40 °C	0.984 in	Cable Gland	Brass Nickel Plated	Silver
LAPP 53112931	M32		0.276 in	IP68	Dust Tight Waterproof	0.315 in 1.272 in	100 °C	-40 °C	0.591 in	Cable Gland	Nylon Polyamide (PA)	Black	1.272 in
LAPP 53112928	M32		0.276 in	IP68	Dust Tight Waterproof	0.315 in 1.272 in	100 °C	-40 °C	0.591 in	Cable Gland	Nylon Polyamide (PA)	Gray	1.272 in
LAPP 53112040		O-Ring	0.433 in	IP68 IP69	12 4 6 Dust Tight Water Resistant Waterproof; NEMA 1	0.354 in	100 °C	-40 °C	0.827 in	Cable Gland	Brass Nickel Plated	Silver		32 mm	1.5 mm
LAPP 53112100		O-Ring	0.078 in	IP68 IP69	12 4 6 Dust Tight Water Resistant Waterproof; NEMA 1	0.256 in	100 °C	-40 °C	0.197 in	Cable Gland	Brass Nickel Plated	Silver		12 mm	1.5 mm
LAPP 53112120		O-Ring	0.197 in	IP68 IP69	12 4 6 Dust Tight Water Resistant Waterproof; NEMA 1	0.315 in	100 °C	-40 °C	0.394 in	Cable Gland	Brass Nickel Plated	Silver		20 mm	1.5 mm
LAPP 53112130		O-Ring	0.236 in	IP68 IP69	12 4 6 Dust Tight Water Resistant Waterproof; NEMA 1	0.315 in	100 °C	-40 °C	0.512 in	Cable Gland	Brass Nickel Plated	Silver		25 mm	1.5 mm
LAPP 53112927	M12		0.139 in	IP68	Dust Tight Waterproof	0.484 in	100 °C	-40 °C	0.197 in	Cable Gland	Nylon Polyamide (PA)	Gray	0.484 in
LAPP 53112886	M20		0.197 in	IP68	Dust Tight Waterproof	0.799 in	100 °C	-40 °C	0.394 in	Cable Gland	Nylon Polyamide (PA)	Black	0.8 in
LAPP 53112026		O-Ring	0.197 in			0.591 in	100 °C	-40 °C	0.394 in	Cable Gland	Brass Nickel Plated	Silver				0.5 in	NPT	12 4X 6 IP68 - Dust Tight NEMA 1 Waterproof
