PNP8E3D2Y03QE

Active

LITTELFUSE

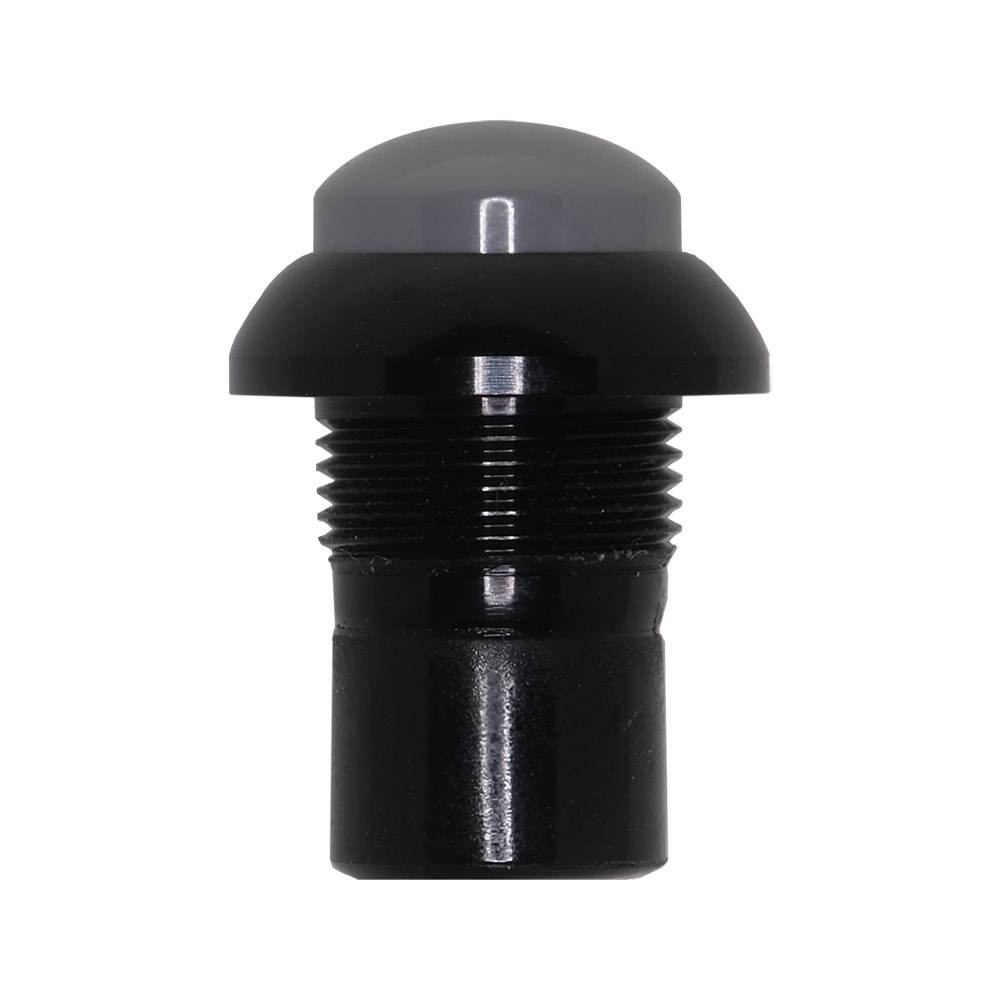

SWITCH PUSHBUTTON SPST-NO 5A 32V

Find alt

Alpha

PNP8E3D2Y03QE

Active

LITTELFUSE

SWITCH PUSHBUTTON SPST-NO 5A 32V

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Pnp0 Series Series

The PNP series sealed pushbutton switch from C&K is engineered to meet the needs of applications for harsh environments – such as industrial, off-road, heavy equipment and lift products – where the switches are used repeatedly and are exposed to dust, water or other typically damaging elements. C&K’s PNP switches are IP68 sealed and RoHS compliant, feature a long lifecycle (1,000,000 uses) and are available in a variety of housing styles with up to a 5A resistive load.

Technical Specifications

Parameters and characteristics for this part

Specification	PNP8E3D2Y03QE

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating	5 A
Features	Epoxy Sealed Terminals
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	12.3 mm
Panel Cutout Shape	Circular
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	32 V

Pnp0 Series Series

Pushbutton Switches 1A 32VDC YLW SPST NC STD THRD SLDR IP68

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Actuator Type	Circuit	Mounting Type	Type	Voltage Rating - DC	Switch Function	Termination Style	Ingress Protection IP Rating	Ingress Protection Description	Color - Actuator/Cap	Features	Actuator Marking
LITTELFUSE PNP3S2D2Y03QE	1000000 Cycles	1000000 Cycles	-40 °C	85 °C	12.3 mm	Circular	5 A	Button Domed Round	SPST-NO	Front Panel Mount	Standard	32 V	Off-Mom	Solder Lug	IP68	Dust Tight Waterproof	Black
LITTELFUSE PNP8E5D2CW3QE	1000000 Cycles	25000	-40 °C	85 °C	12.3 mm	Circular	5 A	Button Round	SPDT	Front Panel Mount	Standard	32 V	On-Mom	Wire Leads	IP68	Dust Tight Waterproof	Yellow
LITTELFUSE PNP3S2T2W03QE	1000000 Cycles	1000000 Cycles	-40 °C	85 °C	12.3 mm	Circular	5 A	Button Domed Round	SPST-NC	Front Panel Mount	Standard	32 V	On-Mom	Solder Lug	IP68	Dust Tight Waterproof	Black
LITTELFUSE PNP8E2D2C03QE			-40 °C	85 °C	12.3 mm	Circular	5 A	Button Round	SPDT	Front Panel Mount	Standard	32 V	On-Mom	Solder Lug	IP68	Dust Tight Waterproof	Black	Epoxy Sealed Terminals	No Marking
LITTELFUSE PNP8S2D2W03QE			-40 °C	85 °C	12.3 mm	Circular	5 A	Button Domed Round	SPST-NC	Front Panel Mount	Standard	32 V	On-Mom	Solder Lug	IP68	Dust Tight Waterproof	Black	Epoxy Sealed Terminals	No Marking
LITTELFUSE PNP8S2D2C03QE			-40 °C	85 °C	12.3 mm	Circular	5 A	Button Domed Round	SPDT	Front Panel Mount	Standard	32 V	On-Mom	Solder Lug	IP68	Dust Tight Waterproof	Black	Epoxy Sealed Terminals	No Marking
LITTELFUSE PNP8S2D2W02GE	1000000 Cycles	1000000 Cycles	-40 °C	85 °C	12.3 mm	Circular	10 mA	Button Domed Round	SPST-NC	Front Panel Mount	Standard	5 V	On-Mom	PC Pin	IP68	Dust Tight Waterproof	Black
LITTELFUSE PNP8S3T2W03QE			-40 °C	85 °C	12.3 mm	Circular	5 A	Button Round	SPST-NC	Front Panel Mount	Standard	32 V	On-Mom	Solder Lug	IP68	Dust Tight Waterproof	Red	Epoxy Sealed Terminals	No Marking
LITTELFUSE PNP8S3D2Y02GE	1000000 Cycles	25000	-40 °C	85 °C	12.3 mm	Circular	5 A	Button Round	SPST-NO	Front Panel Mount	Standard	32 V	Off-Mom	PC Pin	IP68	Dust Tight Waterproof	Red
LITTELFUSE PNP8E3D2CW3QE	1000000 Cycles	25000	-40 °C	85 °C	12.3 mm	Circular	5 A	Button Round	SPDT	Front Panel Mount	Standard	32 V	On-Mom	Wire Leads	IP68	Dust Tight Waterproof	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

pnp
