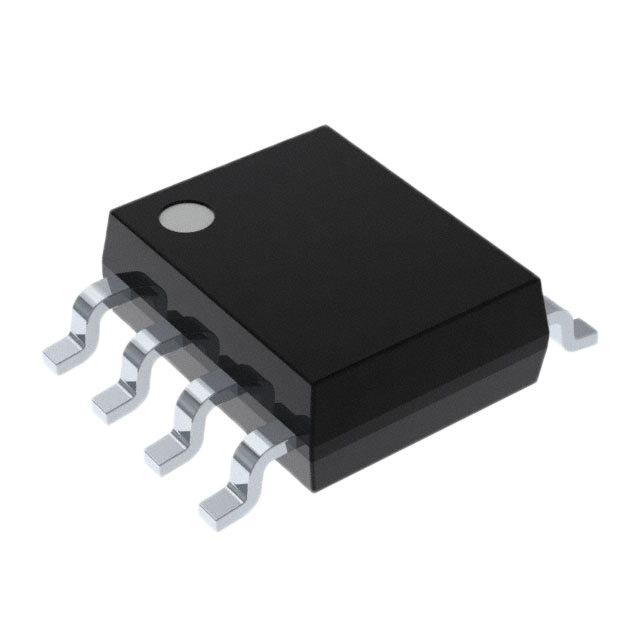

Specification	AM4825P

Current - Continuous Drain (Id) (Ta)	11.5 A
Current - Continuous Drain (Id) (Tc)	17.5 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On)	4.5 V
Drive Voltage (Min Rds On)	10 V
FET Type	P-Channel
Gate Charge (Max)	42 nC
Input Capacitance (Ciss) (Max)	2380 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package Length	0.154 in
Package Name	8-SOIC, 8-SO
Package Width	3.9 mm
Power Dissipation (Max)	3.1 W, 6.3 W
Rds On (Max)	13 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	1 V
