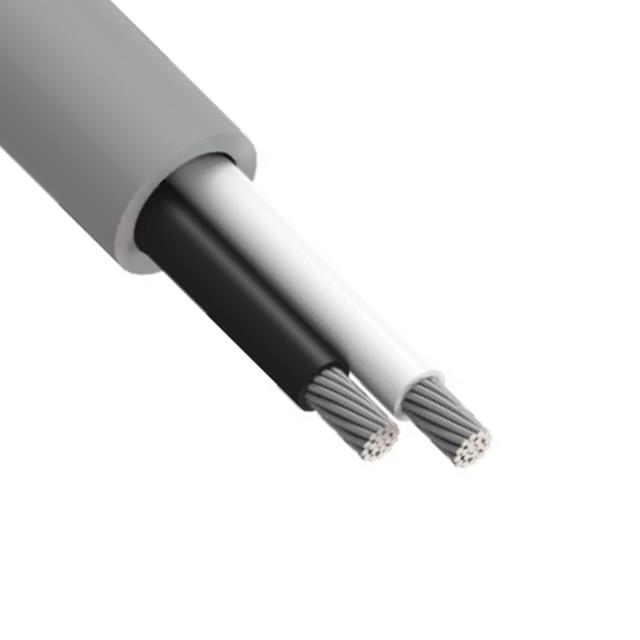

8442MN 008100

Active

Belden Inc.

CABLE 2COND 22AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8442MN 008100

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	3.35 mm
Jacket (Insulation) Diameter [diameter]	0.132 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Wire Gauge	22 AWG

Part	Conductor Strand [custom]	Conductor Strand	Ratings	Voltage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Length	Length	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length [x]	Length [x]
Belden Inc. 8442MN 0061000	19 Strands	34 AWG	UL Style 2937	300 V	Polypropylene (PP)	-20 C	80 C	Copper Tinned	Blue	2	3.35 mm	0.132 in	22 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Audio Control Instrumentation	0.406 mm	0.016 in	Multi-Conductor
Belden Inc. 8442MN 008100	19 Strands	34 AWG			Polypropylene (PP)	-20 C	80 C	Copper Tinned	Gray	2	3.35 mm	0.132 in	22 AWG	Poly-Vinyl Chloride (PVC)				0.406 mm	0.016 in	Multi-Conductor	30.5 m	100 ft
Belden Inc. 8442MN 006100	19 Strands	34 AWG	UL Style 2937	300 V	Polypropylene (PP)	-20 C	80 C	Copper Tinned	Blue	2	3.35 mm	0.132 in	22 AWG	Poly-Vinyl Chloride (PVC)			Audio Control Instrumentation	0.406 mm	0.016 in	Multi-Conductor	30.5 m	100 ft
Belden Inc. 8442MN 0081000	19 Strands	34 AWG	UL Style 2937	300 V	Polypropylene (PP)	-20 C	80 C	Copper Tinned	Gray	2	3.35 mm	0.132 in	22 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Audio Control Instrumentation	0.406 mm	0.016 in	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Gray 22 AWG 100.0' (30.5m)
