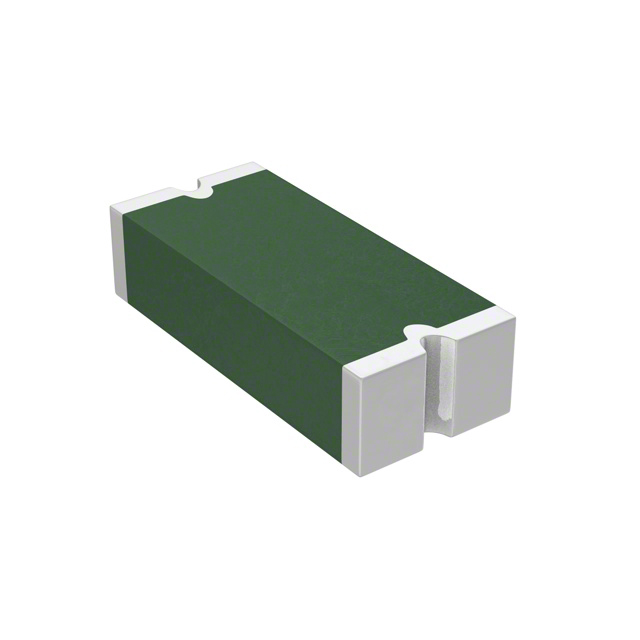

NANOSMD380LR-2
ObsoleteLITTELFUSE
POLY SWITCH PTC, OVERCURRENT PROTECTION DEVICE
NANOSMD380LR-2
ObsoleteLITTELFUSE
POLY SWITCH PTC, OVERCURRENT PROTECTION DEVICE
Description
General part information
NANOSMD380LR-2
Polymeric PTC Resettable Fuse 6V 3.8 A Ih Surface Mount 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NANOSMD380LR-2 |
|---|---|
| Approval Agency | UL |
| Current - Hold (Ih) (Max) | 3.8 A |
| Current - Max | 50 A |
| Current - Trip (It) | 8 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1206 (3216 Metric) |
| Resistance - Initial (Ri) (Min) | 4 mOhms |
| Resistance - Post Trip (R1) (Max) | 14 mOhms |
| Size / Dimension Length | 0.127 in |
| Size / Dimension Width | 0.063 in |
| Thickness (Max) | 0.039 in |
| Time to Trip | 10 s |
| Type | Polymeric |
| Voltage - Max | 6 V |
