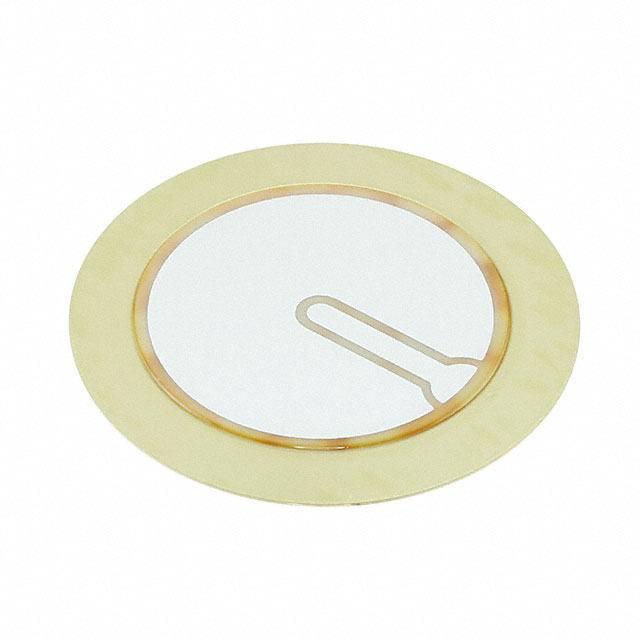

7BB-27-4C
ActiveMurata Electronics
BUZZER ELEMENT FDBK 4.6KHZ 27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7BB-27-4C
ActiveMurata Electronics
BUZZER ELEMENT FDBK 4.6KHZ 27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7BB-27-4C | 7BB Series |
|---|---|---|
| Capacitance @ Frequency | 18000 pF | 8500 - 30000 pF |
| Frequency | 4.6 kHz | 2.2 - 6.3 kHz |
| Impedance | 200 Ohms | 1.2 - 800 Ohms |
| Operating Temperature | - | -20 C |
| Operating Temperature | - | 70 °C |
| Size / Dimension [diameter] | 1.063 " | 0.591 - 1.614 " |
| Size / Dimension [diameter] | 27 mm | 15 - 41 mm |
| Termination | None | None, Wire Leads |
| Type | Feedback | Feedback, Standard |
7BB Series
BUZZER ELEMENT FDBK 4.6KHZ 27MM
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Type | Termination | Impedance | Capacitance @ Frequency | Frequency | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|
Murata Electronics 7BB-27-4C | 1.063 " | 27 mm | Feedback | None | 200 Ohms | 18000 pF | 4.6 kHz | ||
Murata Electronics 7BB-41-2C | 1.614 " | 41 mm | Feedback | Wire Leads | 250 Ohms | 24000 pF | 2.2 kHz | ||
Murata Electronics 7BB-20-3 | 0.787 in | 20 mm | Standard | None | 500 Ohms | 20000 pF | 3.6 kHz | ||
Murata Electronics 7BB-35-3C | 1.378 in | 35 mm | Feedback | None | 200 Ohms | 26000 pF | 2.8 kHz | ||
Murata Electronics 7BB-35-3L0 | 1.378 in | 35 mm | Standard | Wire Leads | 200 Ohms | 30000 pF | 2.8 kHz | ||
Murata Electronics 7BB-41-2L0 | 1.614 " | 41 mm | Standard | Wire Leads | 30000 pF | 2.2 kHz | |||
Murata Electronics 7BB-15-6 | 0.591 in | 15 mm | Standard | None | 800 Ohms | 10000 pF | 6 kHz | ||
Murata Electronics 7BB-41-2CL0 | 1.614 " | 41 mm | Feedback | Wire Leads | 350 Ohms | 24000 pF | 2.2 kHz | -20 C | 70 °C |
Murata Electronics 7BB-27-4 | 1.063 " | 27 mm | Standard | None | 200 Ohms | 20000 pF | 4.6 kHz | ||
Murata Electronics 7BB-20-6C | 0.787 in | 20 mm | Feedback | Wire Leads | 500 Ohms | 8500 pF | 6.3 kHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.47 | |||
| 1500 | $ 0.44 | |||
| 6000 | $ 0.38 | |||
Description
General part information
7BB Series
4.6 kHz Feedback Buzzer Element 1.063" Dia (27.00mm) 200 Ohms
