1-1123723-6
ActiveTE Connectivity AMP Connectors

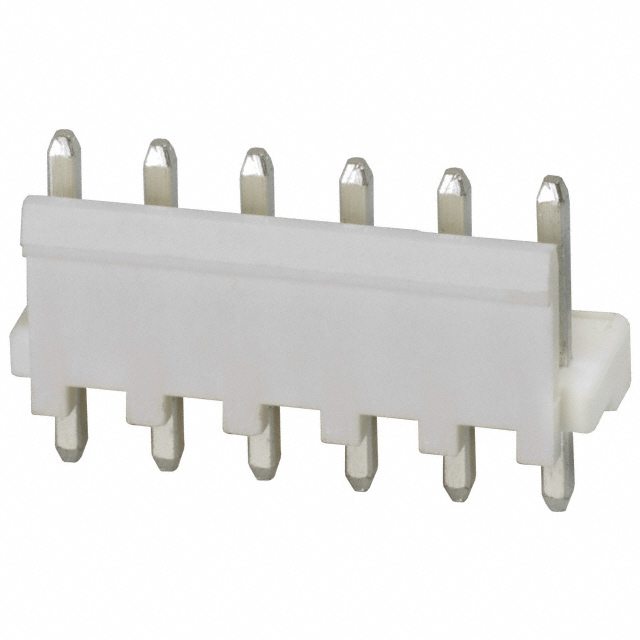

CONN HEADER VERT 6POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1123723-6
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 6POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1123723-6 | 1123723 Series |
|---|---|---|
| Applications | General Purpose, Industrial, Lighting | General Purpose, Industrial, Lighting |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Mating | 7.7 mm | 7.7 mm |
| Contact Length - Mating | 0.303 in | 0.303 in |
| Contact Length - Post | 0.146 in | 0.146 in |
| Contact Length - Post | 3.7 mm | 3.7 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Natural | Natural, Yellow, Blue, Red, Black, Green |
| Insulation Height | 0.118 in | 0.118 in |
| Insulation Height | 3 mm | 3 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 6 | 2 - 11 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Overall Contact Length | 14.4 mm | 14.4 mm |
| Overall Contact Length | 0.567 " | 0.567 " |
| Pitch - Mating | 0.156 in | 0.156 in |
| Pitch - Mating | 3.96 mm | 3.96 mm |
| Shrouding | Shrouded - 1 Wall | Shrouded - 1 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.25 | |||
| 1500 | $ 0.22 | |||
| 6000 | $ 0.19 | |||
| 10500 | $ 0.18 | |||
1123723 Series
CONN HEADER VERT 11POS 3.96MM
| Part | Number of Positions | Contact Shape | Contact Type | Voltage Rating | Material Flammability Rating | Style | Mounting Type | Contact Finish - Post | Current Rating (Amps) | Number of Rows | Fastening Type | Shrouding | Applications | Connector Type | Contact Material | Termination | Insulation Color | Contact Length - Post | Contact Length - Post | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Insulation Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1123723-1 | 11 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Natural | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 2-1123723-4 | 4 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Yellow | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 3-1123723-4 | 4 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Blue | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 2-1123723-1 | 11 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Yellow | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 1-1123723-6 | 6 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Natural | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 1-1123723-2 | 2 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Natural | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 4-1123723-9 | 9 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Red | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 5-1123723-6 | 6 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Black | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 3-1123723-0 | 10 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Blue | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
TE Connectivity AMP Connectors 6-1123723-1 | 11 | Square | Male Pin | 250 VAC | UL94 V-0 | Board to Cable/Wire | Through Hole | Tin | 7.5 A | 1 | Locking Ramp | Shrouded - 1 Wall | General Purpose, Industrial, Lighting | Header | Brass | Solder | Green | 0.146 in | 3.7 mm | 14.4 mm | 0.567 " | All | 0.118 in | 3 mm | 7.7 mm | 0.303 in | Polybutylene Terephthalate (PBT), Glass Filled | 0.156 in | 3.96 mm | -25 °C | 105 ░C |
Description
General part information
1123723 Series
Connector Header Through Hole 6 position 0.156" (3.96mm)
