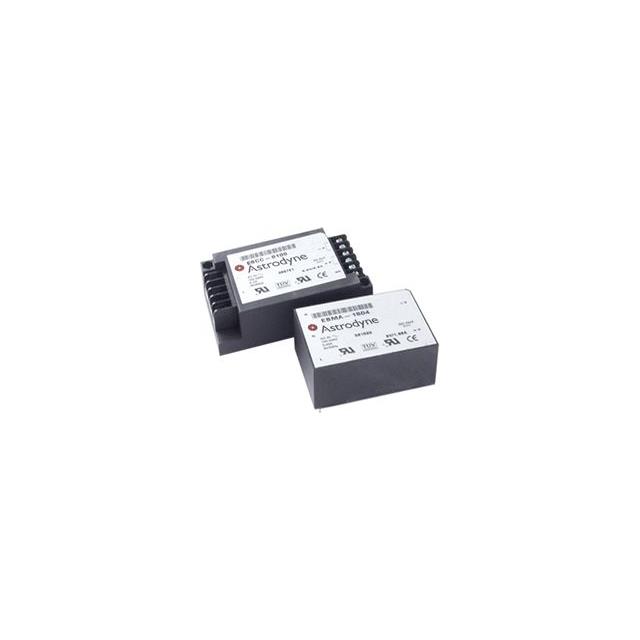

ESCA-1505
ActiveAstrodyne TDI
15W ULTRAMINIATURE ENCAPSULATED
ESCA-1505
ActiveAstrodyne TDI
15W ULTRAMINIATURE ENCAPSULATED
Description
General part information
ESCA-1505
Enclosed AC DC Converters 1 Output 24V 630mA 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ESCA-1505 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output (Max) | 630 mA |
| Efficiency | 77 % |
| Features | Universal Input, Adjustable Output |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Package Leads | 4 Leads |
| Package Name | 8-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.95 in |
| Size / Dimension Length | 2.75 in |
| Size / Dimension Width | 1.89 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 24 V |
