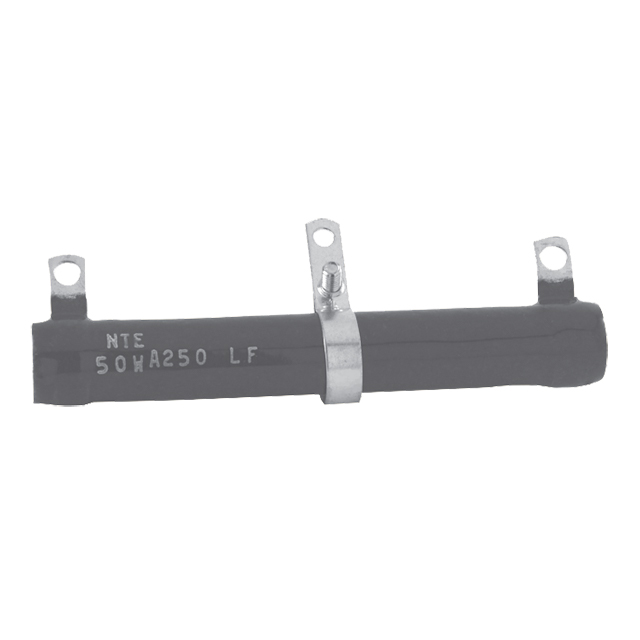

225WA050
ActiveNTE Electronics, Inc
ADJ PWR RES 50 OHM 225W CHAS MT
225WA050
ActiveNTE Electronics, Inc
ADJ PWR RES 50 OHM 225W CHAS MT
Description
General part information
225WA050
50 Ohms 225 W Adjustable Power Resistor Chassis Mount 1.130" OD, 0.750" ID (28.70mm x 19.05mm) 10.500" (266.70mm) Length
Technical Specifications
Parameters and characteristics for this part
| Specification | 225WA050 |
|---|---|
| Diameter (Inner) | 0.75 in |
| Diameter (Length) | 28.7 mm |
| Diameter (Outer) | 1.13 in |
| Diameter (Width) | 19.05 mm |
| Length | 10.5 in |
| Mounting Type | Chassis Mount |
| Package Leads | 3 Leads |
| Package Name | Radial |
| Power (Watts) | 225 W |
| Resistance | 50 Ohms |
| Termination | Solder Lug |
| Tolerance | 10 % |
