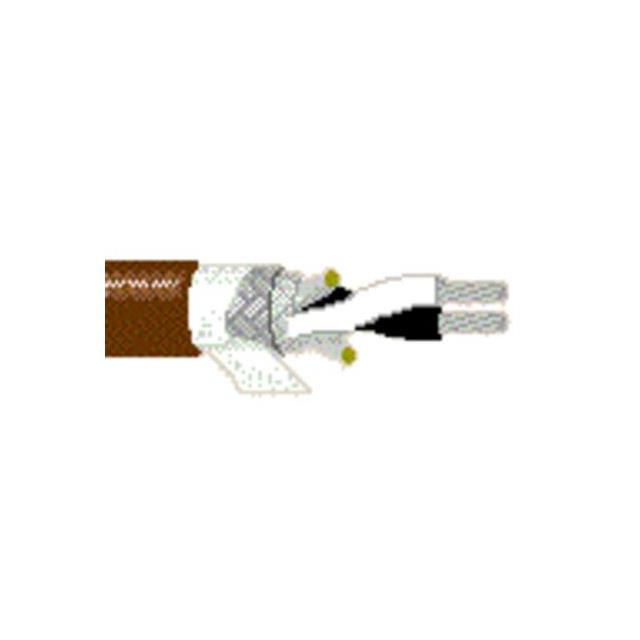

8408 001500

Active

Belden Inc.

2 #16 EPDM BRD CSM

Search across all available documentation for this part.

Active

Belden Inc.

2 #16 EPDM BRD CSM

Technical Specifications

Parameters and characteristics for this part

Specification	8408 001500

Cable Type	Microphone
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	0.38 in
Jacket (Insulation) Diameter [diameter]	9.65 mm
Jacket (Insulation) Material	Chlorosulfonated Polyethylene (CSPE)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Brown
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	85 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	600 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Shield Type	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length [x]	Length [x]	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Insulation	Conductor Material	Cable Type	Jacket Color	Shield Coverage
Belden Inc. 8408 001500	34 AWG	65	Audio	0.04 in	1.016 mm	16 AWG	Double Braid	Viscose; Copper Tinned	-30 ░C	60 °C	Chlorosulfonated Polyethylene (CSPE)	500 '	152.4 m	2	0.38 in	9.65 mm	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	Copper Tinned	Microphone	Brown	85 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 7.41

General part information

2 Conductor Microphone Cable Brown 16 AWG Double Braid 500.0' (152.4m)
