Description
General part information
09022646828

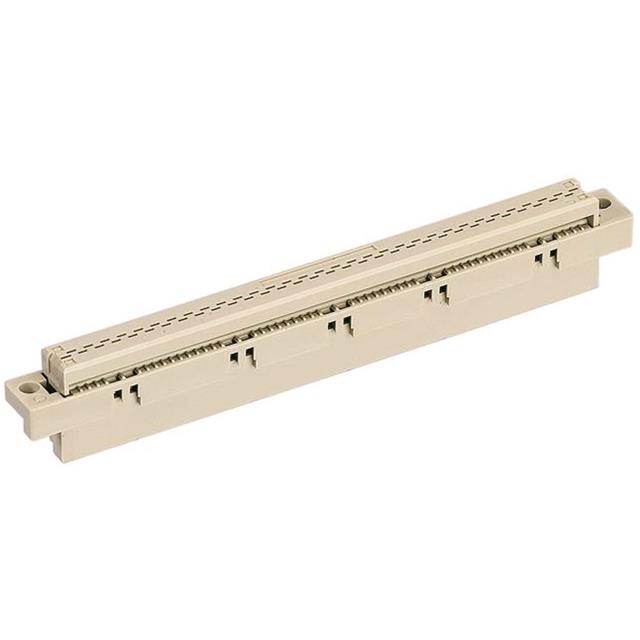

64 Position Din Connector Receptacle, Female Sockets Gold Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 09022646828 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Style | B |
| Termination | IDC |
