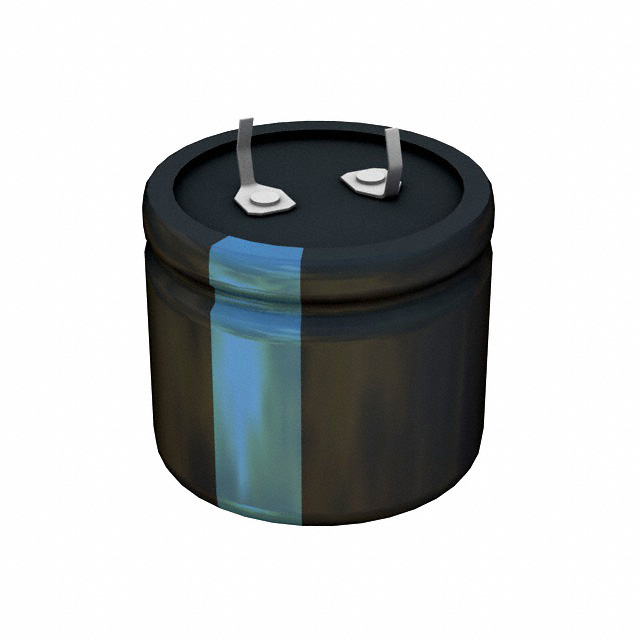

381LX182M080K012
ActiveCornell Dubilier Knowles
CAP ALUM 1800UF 20% 80V SNAP TH
381LX182M080K012
ActiveCornell Dubilier Knowles
CAP ALUM 1800UF 20% 80V SNAP TH
Description
General part information
381LX182M080K012
1800 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 381LX182M080K012 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1800 µF |
| Height - Seated (Max) | 1.063 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.1 A, 1.8 A, 1.8 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
