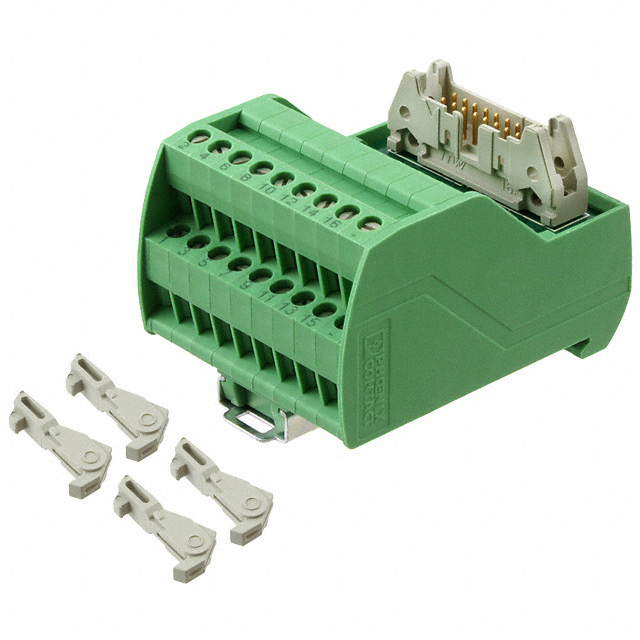

Specification	2322061

Control Side Cable Retainer Type	Latches
Control Side Connection Gender	Male
Control Side Connection Shape	Rectangular
Current Rating (Per Contact)	1 A
Features	LED
Length	1.969 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	16
Process Side Connection	Terminal Blocks, Screw Connection
Voltage - Rated	24 VAC
Width	2.579 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	12 AWG
