IRFH5215TRPBF
ObsoleteIR MOSFET™ N-CHANNEL POWER MOSFET ; SUPERSO8 5X6 PACKAGE; 58 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
IRFH5215TRPBF
ObsoleteIR MOSFET™ N-CHANNEL POWER MOSFET ; SUPERSO8 5X6 PACKAGE; 58 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFH5215TRPBF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 27 A, 5 A |
| Drain to Source Voltage (Vdss) | 150 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1350 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

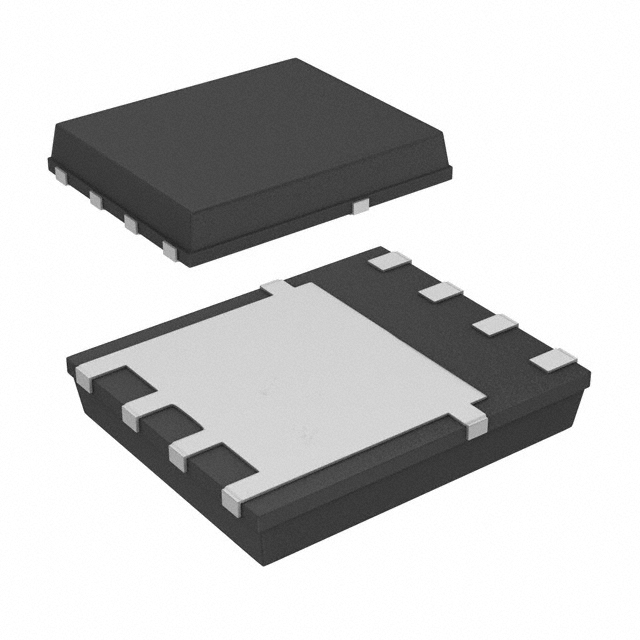

| Package / Case | 8-VQFN Exposed Pad |
| Power Dissipation (Max) | 104 W, 3.6 W |
| Rds On (Max) @ Id, Vgs | 58 mOhm |
| Supplier Device Package | PQFN (5x6) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IRFH5215 Series
The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
