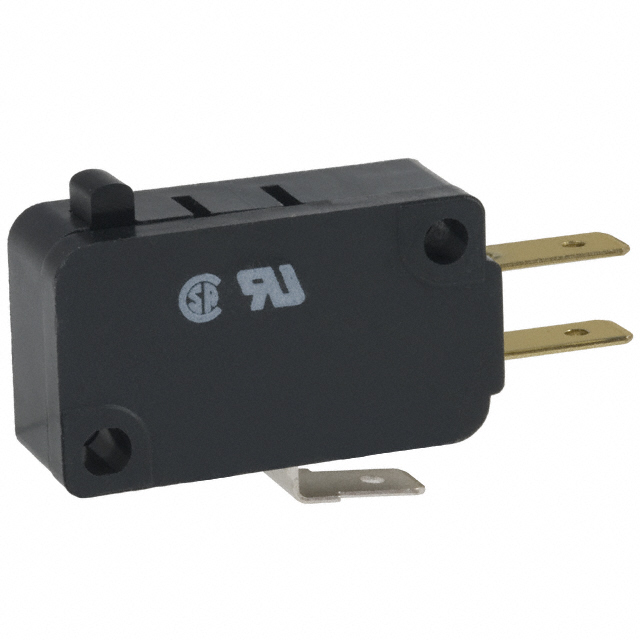

V7-4A17D8

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 5A 125V

Part	Mounting Type	Overtravel	Overtravel	Circuit	Voltage Rating - AC	Mechanical Life	Electrical Life	Differential Travel	Differential Travel	Operating Position	Operating Position	Termination Style	Switch Function	Pretravel	Pretravel	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions V7-4A17D8	Chassis Mount	1.27 mm	0.05 in	SPDT	125 V	10000000 Cycles	100000 Cycles	0.25 mm	0.01 in	0.579 in	14.7 mm	Quick Connect - 0.187" (4.7mm)	On-Mom	0.047 in	1.2 mm	Round (Pin Plunger)	5 A	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
