C058071A2
ActiveMagnetics, a division of Spang & Co.
FERRITE CORE TOROID 61NH HIGH FL
C058071A2
ActiveMagnetics, a division of Spang & Co.
FERRITE CORE TOROID 61NH HIGH FL
Description
General part information
C058071A2

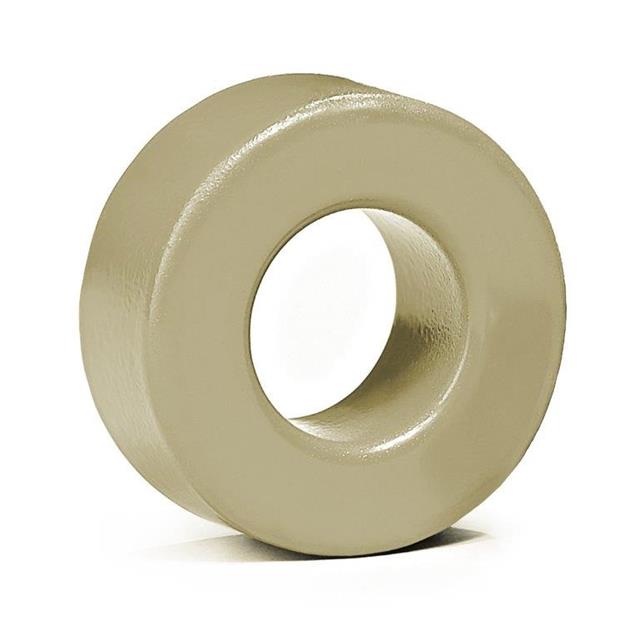

Coated High Flux Ferrite Core Toroid Type Length Width 1.325" (33.66mm) Diameter 0.450" (11.45mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | C058071A2 |
|---|---|
| Core Type | Toroid |
| Diameter | 1.325 in |
| Effective Area (Ae) | 65.6 mm² |
| Effective Length (le) | 81.4 mm |
| Effective Magnetic Volume (Ve) | 5340 mm³ |
| Finish | Coated |
| Gap | Ungapped |
| Height | 0.45 in |
| Inductance Factor (Al) | 61 nH |
| Initial Permeability (µi) | 60 |
| Material | High Flux |
| Tolerance | 8 % |
