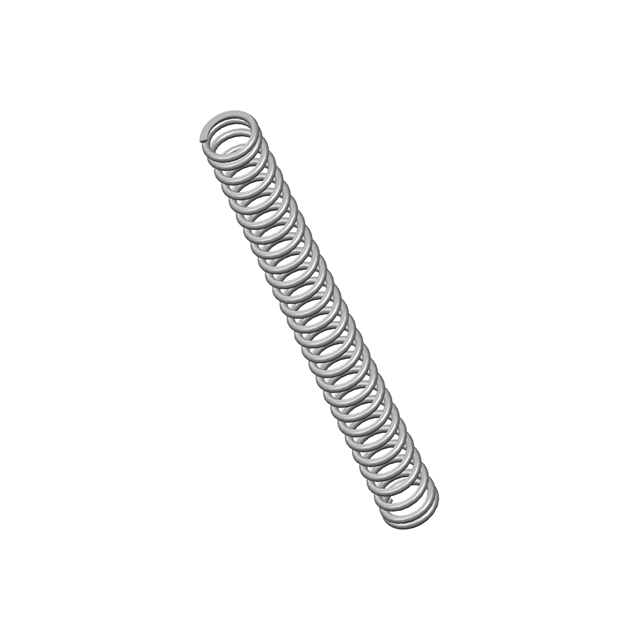

70384CS
ActiveCentury Spring Corp
COMP O= .180,L= 1.75,W= .024
70384CS
ActiveCentury Spring Corp
COMP O= .180,L= 1.75,W= .024
Description
General part information
70384CS
COMP O= .180,L= 1.75,W= .024
Technical Specifications
Parameters and characteristics for this part
| Specification | 70384CS |
|---|---|
| Diameter - Inside | 0.132 in |
| Diameter - Outside | 0.18 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.75 in |
| Material | Music Wire |
| Rate (lbs/in) | 5 lbs/in |
| Type | Compression |
| Wire Diameter | 0.024 in |
