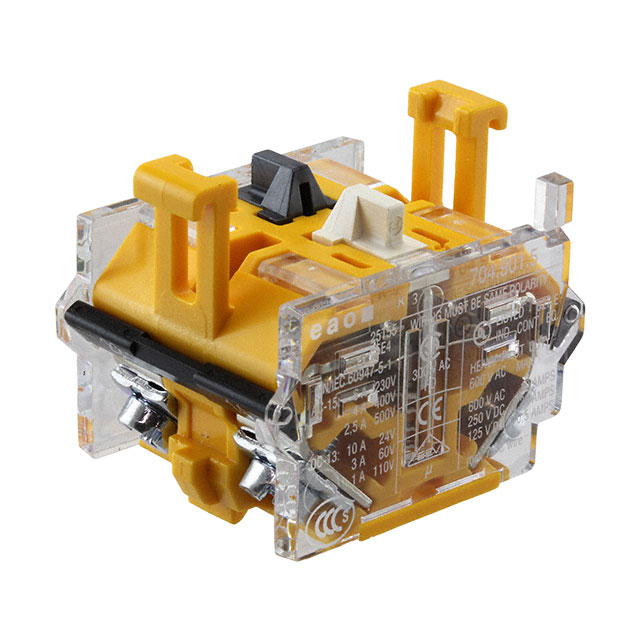

704.901.5
ActiveEAO
CONTACT BLK DPST-NO/NC 10A 500V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
704.901.5
ActiveEAO
CONTACT BLK DPST-NO/NC 10A 500V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.901.5 | 704.901 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Circuit | DPST-NO/NC | DPST-NO/NC, DPST-NC, SPST-NO |
| Contact Rating @ Voltage | 500 VAC, 10 A | 10 - 500 VAC |
| Requires | Switch Body | Switch Body |
| Termination Style | Screw Terminal | Screw Terminal |
704.901 Series
CONTACT BLK DPST-NO/NC 10A 500V
| Part | (Select First, Then Apply Filters) Compatible Series | Contact Rating @ Voltage | Termination Style | Circuit | Requires |
|---|---|---|---|---|---|
EAO 704.901.5 | 04, EAO | 10 A, 500 VAC | Screw Terminal | DPST-NO/NC | Switch Body |
EAO 704.901.4 | 04, EAO | 10 A, 500 VAC | Screw Terminal | DPST-NC | Switch Body |
EAO 704.901.1 | 04, EAO | 10 A, 500 VAC | Screw Terminal | SPST-NO | Switch Body |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.68 | |
| 10 | $ 64.40 | |||
| 25 | $ 60.70 | |||
| 50 | $ 58.04 | |||
| 100 | $ 55.49 | |||
Description
General part information
704.901 Series
Configurable Contact Block DPST-NO/NC 10A @ 500VAC
