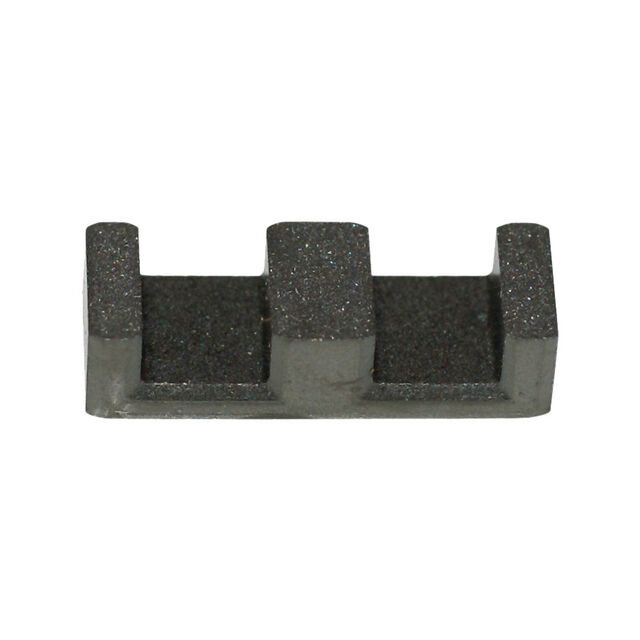

Specification	9498204002

Core Factor (ΣI/A) mm⁻¹	32 mm⁻¹
Core Type	E
Effective Area (Ae)	129 mm²
Effective Length (le)	41.7 mm
Effective Magnetic Volume (Ve)	5380 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.25 in
Initial Permeability (µi)	2400
Length	1.25 in
Minimum Core Cross Section (Amin) (mm²)	127 mm²
Tolerance	25 %
Width	0.801 in
