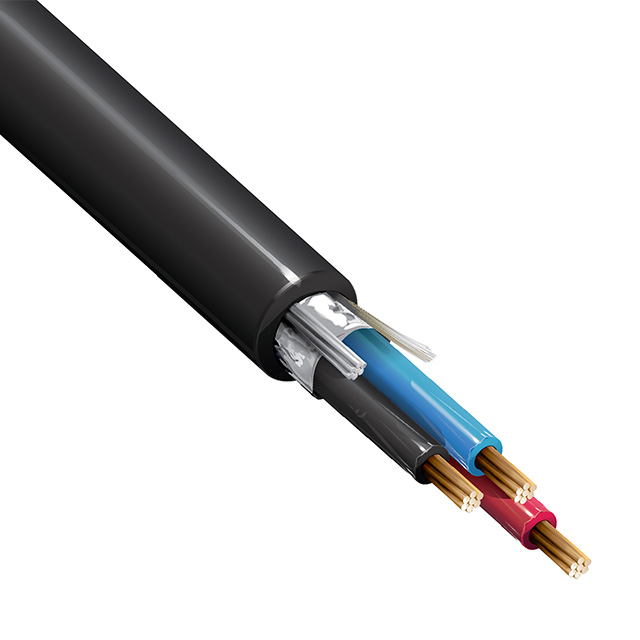

1121A 0101000
ActiveBelden Inc.
CABLE 3COND 18AWG BLK SHLD
Deep-Dive with AI
Search across all available documentation for this part.
1121A 0101000
ActiveBelden Inc.
CABLE 3COND 18AWG BLK SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1121A 0101000 | 1121A Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC) | Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Conductor Strand [custom] | 26 AWG | 26 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Rip Cord, Drain Wire | Rip Cord, Drain Wire |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.194 mm | 1.194 mm |
| Jacket (Insulation) Thickness | 0.047 in | 0.047 in |
| Jacket Color | Black | Black |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 - 3048 m |
| Length | - | 10000 ft |
| Number of Conductors | 3 | 3 |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Wire Gauge | 18 AWG | 18 AWG |
1121A Series
CABLE 3COND 18AWG BLK SHLD
| Part | Shield Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material | Conductor Material | Jacket Color | Number of Conductors | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Wire Gauge | Cable Type | Jacket (Insulation) Material | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. 1121A 0101000 | Foil | Drain Wire, Rip Cord | 26 AWG | 7 | Aluminum | Copper, Bare | Black | 3 | 1000 ft | 304.8 m | Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA) | 1.194 mm | 0.047 in | 100 % | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | |
Belden Inc. 1121A 01010000 | Foil | Drain Wire, Rip Cord | 26 AWG | 7 | Aluminum | Copper, Bare | Black | 3 | 3048 m | Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA) | 1.194 mm | 0.047 in | 100 % | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 10000 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.61 | |
Description
General part information
1121A Series
3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 18 AWG Foil 1000.0' (304.8m)
