Description
General part information

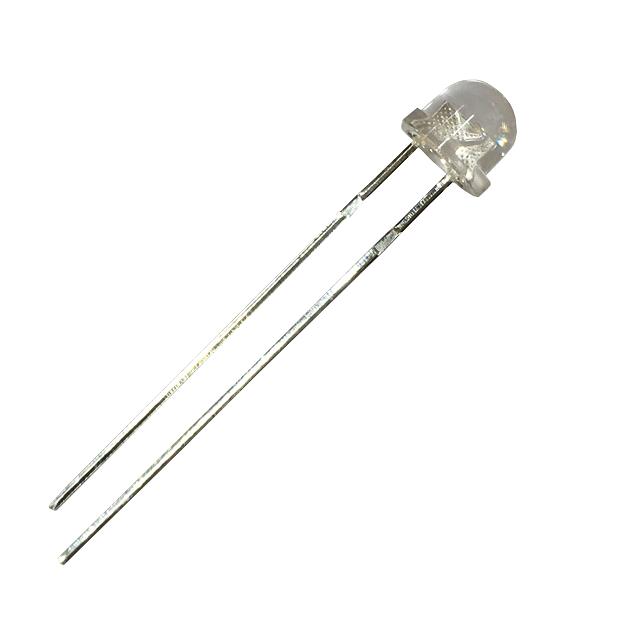

BF5H80GA-YHR-150mA
Infrared (IR) Emitter 850nm 1.6V 150mA 20mW/sr @ 150mA 80°
Technical Specifications
Parameters and characteristics for this part
| Specification | BF5H80GA-YHR-150mA |
|---|---|
| Current - DC Forward (If) (Max) | 150 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Radiant Intensity (Ie) Min | 20 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 80 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 850 nm |
