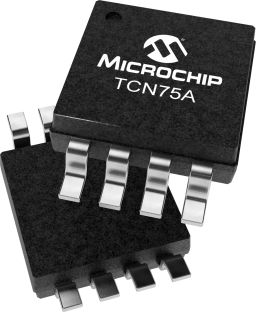

TCN75AVUA713
ActiveTEMP SENSOR DIGITAL SERIAL (2-WIRE, I2C) 8-PIN MSOP T/R
Deep-Dive with AI
Search across all available documentation for this part.
TCN75AVUA713
ActiveTEMP SENSOR DIGITAL SERIAL (2-WIRE, I2C) 8-PIN MSOP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TCN75AVUA713 | TCN75 Series |
|---|---|---|
| - | - | |
| Accuracy - Highest (Lowest) | 2 °C | 2 - 3 °C |
| Features | Output Switch, Programmable Resolution, Programmable Limit, Shutdown Mode | Shutdown Mode, Programmable Limit, Output Switch, Standby Mode, Programmable Resolution |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
| Output Type | I2C | I2C |
| Package / Case | 8-MSOP, 8-TSSOP | 8-SOIC, 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm | 3 mm |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Package / Case [custom] | 0.118 in | 0.118 in |
| Qualification | - | AEC-Q100 |
| Resolution | 11 b | 8 - 11 b |
| Sensing Temperature - Local [Max] | 125 °C | 125 °C |
| Sensing Temperature - Local [Min] | -40 °C | -55 - -40 ¯C |
| Sensor Type | Digital, Local | Digital, Local |
| Supplier Device Package | 8-MSOP | 8-SOIC, 8-MSOP |
| Test Condition [Max] | 125 °C | 125 °C |
| Test Condition [Min] | -40 °C | -40 °C |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 25 | $ 0.73 | |||
| 100 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 25 | $ 0.73 | |||
| 100 | $ 0.67 | |||
| Tape & Reel (TR) | 2500 | $ 0.67 | ||
| Microchip Direct | T/R | 1 | $ 0.88 | |
| 25 | $ 0.73 | |||
| 100 | $ 0.67 | |||
| 1000 | $ 0.65 | |||
TCN75 Series
TEMP SENSOR DIGITAL SERIAL (2-WIRE, I2C) 8-PIN SOIC N TUBE
| Part | Accuracy - Highest (Lowest) | Output Type | Mounting Type | Sensor Type | Sensing Temperature - Local [Max] | Sensing Temperature - Local [Min] | Features | Voltage - Supply [Min] | Voltage - Supply [Max] | Resolution | Package / Case | Package / Case [y] | Package / Case [x] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Package / Case [custom] | Package / Case | Test Condition [Min] | Test Condition [Max] | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TCN75-5.0MOA | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-SOIC | 3.9 mm | 0.154 in | -55 °C | 125 °C | 8-SOIC | ||||||
Microchip Technology TCN75-5.0MOA713 | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-SOIC | 3.9 mm | 0.154 in | -55 °C | 125 °C | 8-SOIC | ||||||
Microchip Technology TCN75-3.3MUA | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-MSOP, 8-TSSOP | -55 °C | 125 °C | 8-MSOP | 0.118 in | 3 mm | ||||||
Microchip Technology TCN75-5.0MUA | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-MSOP, 8-TSSOP | -55 °C | 125 °C | 8-MSOP | 0.118 in | 3 mm | ||||||
Microchip Technology TCN75AVUA713 | 2 °C | I2C | Surface Mount | Digital, Local | 125 °C | -40 °C | Output Switch, Programmable Limit, Programmable Resolution, Shutdown Mode | 2.7 V | 5.5 V | 11 b | 8-MSOP, 8-TSSOP | -40 °C | 125 °C | 8-MSOP | 0.118 in | 3 mm | -40 °C | 125 °C | ||||
Microchip Technology TCN75-5.0MOAG | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-SOIC | 3.9 mm | 0.154 in | -55 °C | 125 °C | 8-SOIC | ||||||
Microchip Technology TCN75AVOA | ||||||||||||||||||||||
Microchip Technology TCN75-3.3MOA713G | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-SOIC | 3.9 mm | 0.154 in | -55 °C | 125 °C | 8-SOIC | ||||||
Microchip Technology TCN75-5.0MUAG | 3 °C | I2C | Surface Mount | Digital, Local | 125 °C | -55 ¯C | Output Switch, Programmable Limit, Shutdown Mode, Standby Mode | 2.7 V | 5.5 V | 8 b | 8-MSOP, 8-TSSOP | -55 °C | 125 °C | 8-MSOP | 0.118 in | 3 mm | ||||||
Microchip Technology TCN75-5.0MOA713 |
Description
General part information
TCN75 Series
The TCN75A is a digital temperature sensor capable of reading temperatures from -40°C to +125°C. Temperature data is measured from an integrated temperature sensor and converted to digital word with a user selectable 9 to 12-bit Sigma Delta Analog to Digital Converter. The TCN75A notifies the host controller when the ambient temperature exceeds a user programmed set point. The ALERT output is programmable as either a simple comparator for thermostat operation or as a temperature event interrupt. Communication with the sensor is accomplished via a two-wire bus that is compatible with industry standard protocols. This permits reading the current temperature, programming the set point and hysteresis and configuring the device. Small physical size, low installed cost and ease of use make the TCN75A an ideal choice for implementing sophisticated temperature system management schemes in a variety of applications.
