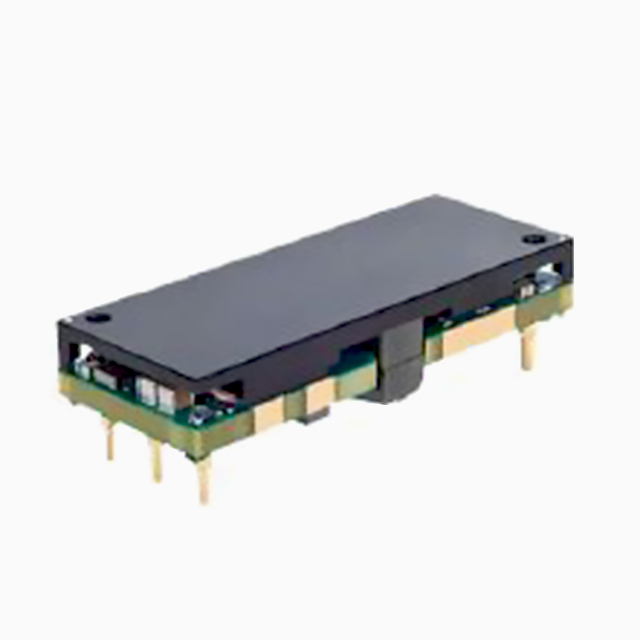

RBE-12/20-D48PBH-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RBE-12/20-D48PBH-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RBE-12/20-D48PBH-C | RBE-12 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 20 A | 20 A |
| Efficiency | 94.5 % | 94.5 % |
| Features | OCP, UVLO, OTP, SCP | OCP, UVLO, OTP, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module, 5 Leads, 1/8 Brick | 8-DIP Module, 5 Leads, 1/8 Brick |
| Power (Watts) | 240 W | 240 W |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [z] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
RBE-12 Series
DC DC CONVERTER 12V 240W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Type | Voltage - Isolation | Features | Package / Case | Mounting Type | Voltage - Output 1 | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Efficiency | Applications | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. RBE-12/20-D48PBH-C | 85 °C | -40 °C | 36 V | 75 V | Isolated Module | 2250 VDC | OCP, OTP, SCP, UVLO | 8-DIP Module, 5 Leads, 1/8 Brick | Through Hole | 12 V | 20 A | 22.9 mm | 58.4 mm | 12.7 mm | 0.5 in | 2.3 in | 0.9 " | 240 W | 94.5 % | ITE (Commercial) | 1 |
Murata Power Solutions Inc. RBE-12/20-D48NBH-C | 85 °C | -40 °C | 36 V | 75 V | Isolated Module | 2250 VDC | OCP, OTP, SCP, UVLO | 8-DIP Module, 5 Leads, 1/8 Brick | Through Hole | 12 V | 20 A | 22.9 mm | 58.4 mm | 12.7 mm | 0.5 in | 2.3 in | 0.9 " | 240 W | 94.5 % | ITE (Commercial) | 1 |
Murata Power Solutions Inc. RBE-12/20-D48NB-C | |||||||||||||||||||||
Murata Power Solutions Inc. RBE-12/20-D48NB-C | 85 °C | -40 °C | 36 V | 75 V | Isolated Module | 2250 VDC | OCP, OTP, SCP, UVLO | 8-DIP Module, 5 Leads, 1/8 Brick | Through Hole | 12 V | 20 A | 22.9 mm | 58.4 mm | 12.7 mm | 0.5 in | 2.3 in | 0.9 " | 240 W | 94.5 % | ITE (Commercial) | 1 |
Description
General part information
RBE-12 Series
Isolated Module DC DC Converter 1 Output 12V 20A 36V - 75V Input
