141-4SMRSM+

Active

MINI-CIRCUITS

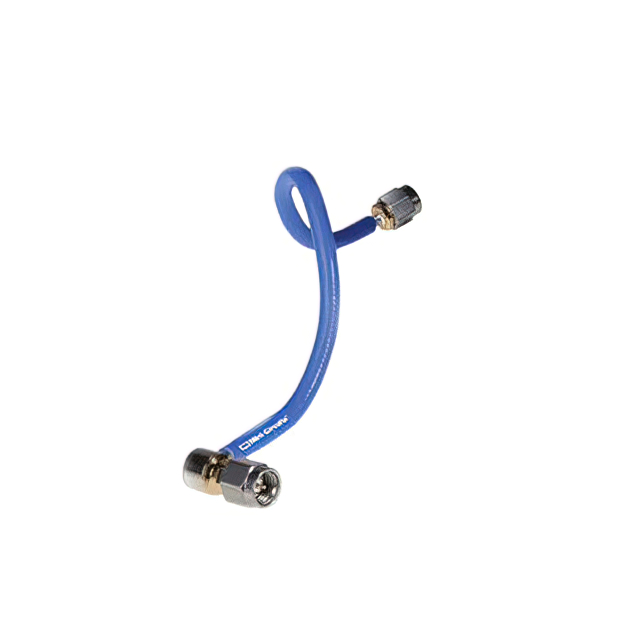

CBL ASSY SMA PLUG TO PLUG 4"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL ASSY SMA PLUG TO PLUG 4"

Part	1st Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	Style	1st Connector	2nd Contact Gender	1st Connector Mounting Type	Color	2nd Connector	Frequency - Max [Max]	Length	Length	Overall Impedance	2nd Connector Mounting Type	Cable Type
MINI-CIRCUITS 141-4SMRSM+	Male	105 ░C	-55 °C	SMA to SMA	Right Angle, SMA Plug	Male	Free Hanging (In-Line)	Blue	SMA Plug	18 GHz	4 in	101.6 mm	50 Ohms	Free Hanging (In-Line)	Hand Formable .141
MINI-CIRCUITS 141-4SM+	Male	105 ░C	-55 °C	SMA to SMA	SMA Plug	Male	Free Hanging (In-Line)	Blue	SMA Plug	18 GHz	4 in	101.6 mm	50 Ohms	Free Hanging (In-Line)	Hand Formable .141

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .141 4.000" (101.60mm)
