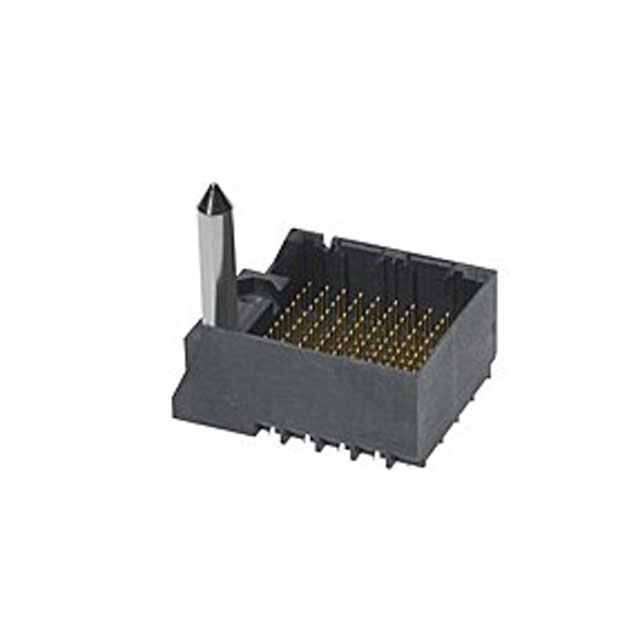

Specification	0761557106

Color	Black
Connector Style	Guide Left, Impact
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076155 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Material Flammability Rating	Number of Columns	Contact Finish Thickness	Number of Positions Loaded	Pitch	Termination	Number of Rows	Connector Style	Color	Number of Positions	Contact Finish	Mounting Type	Connector Type	Differential Pairs (Typical)
Molex 0761551608	-55 °C	85 °C	30 V	UL94 V-0	16	30 µin	All	0.053 in	Press-Fit	12	Impact	Black	192	Gold	Through Hole	Header Male Pins	64
Molex 0761551318	-55 °C	85 °C		UL94 V-0	6	30 µin	All	0.053 in	Press-Fit	12	Impact	Black	72	Gold	Through Hole	Header Male Pins	24
Molex 0761557604	-55 °C	85 °C	30 V	UL94 V-0	16	30 µin	All	0.053 in	Press-Fit	12	Guide Left Impact	Black	192	Gold	Through Hole	Header Male Pins	64
Molex 0761552604	-55 °C	85 °C	30 V	UL94 V-0	16	30 µin	All	0.053 in	Press-Fit	12	Guide Left Impact	Black	192	Gold	Through Hole	Header Male Pins	24
Molex 0761551623	-55 °C	85 °C	30 V	UL94 V-0	16	30 µin	All	0.053 in	Press-Fit	12	Impact	Black	192	Gold	Through Hole	Header Male Pins	64
Molex 0761551834	-55 °C	85 °C	30 V	UL94 V-0	8	30 µin	All	0.053 in	Press-Fit	12	Impact	Black	96	Gold	Through Hole	Header Male Pins	32
Molex 0761551635	-55 °C	85 °C	30 V	UL94 V-0	16	30 µin	All	0.053 in	Press-Fit	12	Impact	Black	192	Gold	Through Hole	Header Male Pins	64
Molex 0761554605	-55 °C	85 °C	30 V	UL94 V-0	16	30 µin	All	0.053 in	Press-Fit	12	Guide Right Impact	Black	192	Gold	Through Hole	Header Male Pins	64
Molex 0761553105	-55 °C	85 °C	30 V	UL94 V-0	10	30 µin	All	0.053 in	Press-Fit	12	Guide Left Impact	Black	120	Gold	Through Hole	Header Male Pins	10
Molex 0761556808	-55 °C	85 °C	30 V	UL94 V-0	8	30 µin	All	0.053 in	Press-Fit	12	Guide Left Impact	Black	96	Gold	Through Hole	Header Male Pins	32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Backplane Roadmap

0761557106 | Datasheet
