IMSA-11501S-08D-GFN1

Active

IRISO USA Inc.

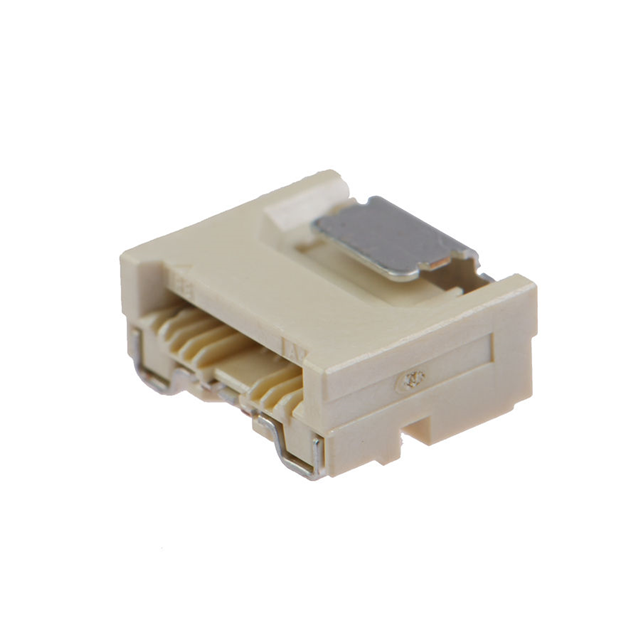

CONN FFC BOTTOM 8POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-11501S-08D-GFN1

Active

IRISO USA Inc.

CONN FFC BOTTOM 8POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.12
		10	$ 0.95
		25	$ 0.91
		50	$ 0.89
		100	$ 0.85
		250	$ 0.78
		500	$ 0.70
	Tape & Reel (TR)	1500	$ 0.51
		3000	$ 0.48

Description

General part information

IMSA-115 Series

8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

Datasheet

Specification	IMSA-11501S-08D-GFN1	IMSA-115 Series

Cable End Type	Notched	Notched
Connector/Contact Type	Contacts, Bottom	Contacts, Bottom
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	0.5 A	0.5 A
Features	Solder Retention	Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board [z]	3.4 mm	3.4 mm
Height Above Board [z]	0.134 in	0.134 in
Housing Color	-	Black
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	8	8 - 60
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination	Solder	Solder
Voltage Rating	50 V	50 V

Part	Housing Material	Connector/Contact Type	FFC, FCB Thickness	Termination	Height Above Board [z]	Height Above Board [z]	Contact Finish	Housing Color	Pitch [x]	Pitch [x]	Flat Flex Type	Mounting Type	Features	Current Rating (Amps)	Voltage Rating	Cable End Type	Contact Material	Material Flammability Rating	Number of Positions
