CH-09-525-W(F)

Active

Floyd Bell Inc

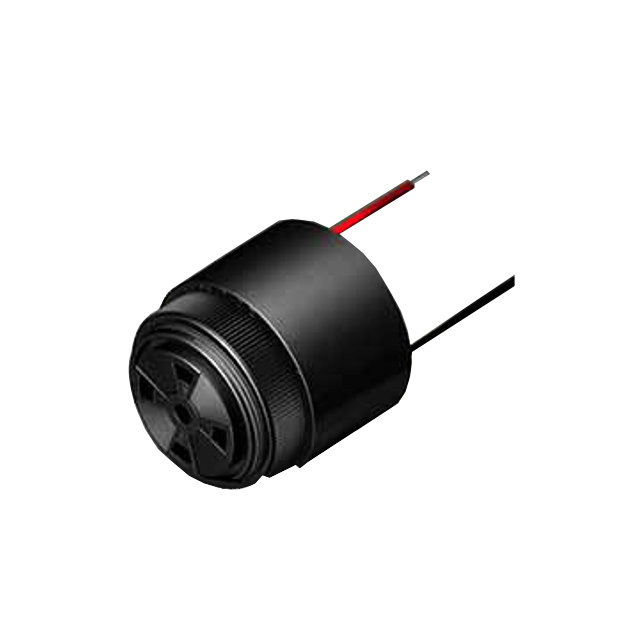

BUZZER PIEZO 35.8MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

CH-09-525-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.8MM PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CH-09-525-W(F)	CH-09-525 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	25 mA	25 - 45 mA
Current - Supply [Min]	5 mA	5 - 10 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.1 - 2.9 kHz
Height - Seated (Max) [Max] [z]	35.05 mm	35.05 mm
Height - Seated (Max) [Max] [z]	1.38 in	1.38 in
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Chime	Chime, Single Shot
Port Location	Top	Top
Size / Dimension [diameter]	1.409 in	1.409 - 1.41 in
Size / Dimension [diameter]	35.8 mm	35.8 - 35.81 mm
Sound Pressure Level (SPL)	93 dB	93 dB
Technology	Piezo	Piezo
Termination	Wire Leads	Wire Leads, Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	25 VDC	25 VDC
Voltage Range [Min]	5 VDC	5 VDC

CH-09-525 Series

BUZZER PIEZO 35.81MM PNL MNT

Part	Termination	Operating Mode	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Port Location	Input Type	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection	Current - Supply [Min]	Current - Supply [Max]	Driver Circuitry	Technology	Sound Pressure Level (SPL)	Approval Agency
Floyd Bell Inc CH-09-525-W(S)	Wire Leads	Chime, Single Shot	35.05 mm	1.38 in	Top	DC	2.1 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	10 mA	45 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-S(F)	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Chime	35.05 mm	1.38 in	Top	DC	2.9 kHz	1.409 in	35.8 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	5 mA	25 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-S(M)	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Chime	35.05 mm	1.38 in	Top	DC	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	5 mA	25 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-Q(M)	Quick Connect Tab - 0.250" (6.35mm)	Chime	35.05 mm	1.38 in	Top	DC	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	5 mA	25 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-W(F)	Wire Leads	Chime	35.05 mm	1.38 in	Top	DC	2.9 kHz	1.409 in	35.8 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	5 mA	25 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-Q(F)	Quick Connect Tab - 0.250" (6.35mm)	Chime	35.05 mm	1.38 in	Top	DC	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	5 mA	25 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-S(S)	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Chime, Single Shot	35.05 mm	1.38 in	Top	DC	2.1 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	IP68 - Dust Tight, Waterproof	10 mA	45 mA	Indicator, Internally Driven	Piezo	93 dB	UL, UR
Floyd Bell Inc CH-09-525-Q(S)	Quick Connect Tab - 0.250" (6.35mm)	Chime, Single Shot	35.05 mm	1.38 in	Top	DC	2.1 kHz	1.409 in	35.8 mm	5 VDC	25 VDC		10 mA	45 mA		Piezo	93 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CH-09-525 Series

Buzzers Indicator, Internally Driven Piezo 5 ~ 25mA 2.9kHz 93dB @ 25V, 61cm Panel Mount Wire Leads
