A9AAT-1208F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFE12T/AF12/AFE12T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A9AAT-1208F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFE12T/AF12/AFE12T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9AAT-1208F | A9AAT Series |
|---|---|---|
| Contact Termination | Solder Tab to Solder Tab | Solder Tab to Solder Tab |
| Length | 203.2 mm | 76.2 - 203.2 mm |
| Length | 8 in | 6 - 8 in |
| Length | - | 3 - 5 in |
| Length | - | 101.6 - 127 mm |
| Number of Positions | 12 | 2 - 22 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 1.27 - 2.54 mm |
| Pitch [x] | 0.1 in | 0.05 - 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.95 | |
| 10 | $ 4.93 | |||
| 25 | $ 4.58 | |||
| 50 | $ 4.32 | |||
| 100 | $ 4.09 | |||
| 250 | $ 3.79 | |||
| 500 | $ 3.59 | |||
| 1000 | $ 3.39 | |||
| 2500 | $ 3.15 | |||
A9AAT Series
FLEX CABLE - AFE06T/AF06/AFE06T
...
| Part | Number of Positions | Pitch [x] | Pitch [x] | Length [x] | Length [x] | Contact Termination | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9AAT-0605F | 6 | 2.54 mm | 0.1 in | 5 in | 127 mm | Solder Tab to Solder Tab | |||
TE Connectivity AMP Connectors A9AAT-1705E | 1.27 mm | 0.05 in | 5 in | 127 mm | Solder Tab to Solder Tab | ||||
TE Connectivity AMP Connectors A9AAT-1805F | 18 | 2.54 mm | 0.1 in | 5 in | 127 mm | Solder Tab to Solder Tab | |||
TE Connectivity AMP Connectors A9AAT-0608E | 6 | 1.27 mm | 0.05 in | Solder Tab to Solder Tab | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9AAT-0706E | 7 | 1.27 mm | 0.05 in | Solder Tab to Solder Tab | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9AAT-0604E | 6 | 1.27 mm | 0.05 in | 4 " | 101.6 mm | Solder Tab to Solder Tab | |||
TE Connectivity AMP Connectors A9AAT-1208F | 12 | 2.54 mm | 0.1 in | Solder Tab to Solder Tab | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9AAT-2506E | 1.27 mm | 0.05 in | Solder Tab to Solder Tab | 152.4 mm | 6 in | ||||
TE Connectivity AMP Connectors A9AAT-1306F | 13 | 2.54 mm | 0.1 in | Solder Tab to Solder Tab | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9AAT-1006F | 10 | 2.54 mm | 0.1 in | Solder Tab to Solder Tab | 152.4 mm | 6 in |
Description
General part information
A9AAT Series

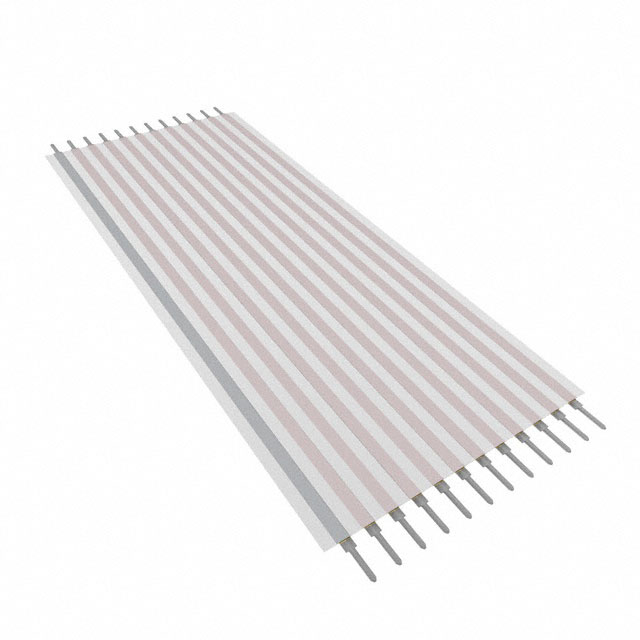

12 Position Flat Flex Cable Assembly Solder Tab to Solder Tab 8.00" (203.20mm)
