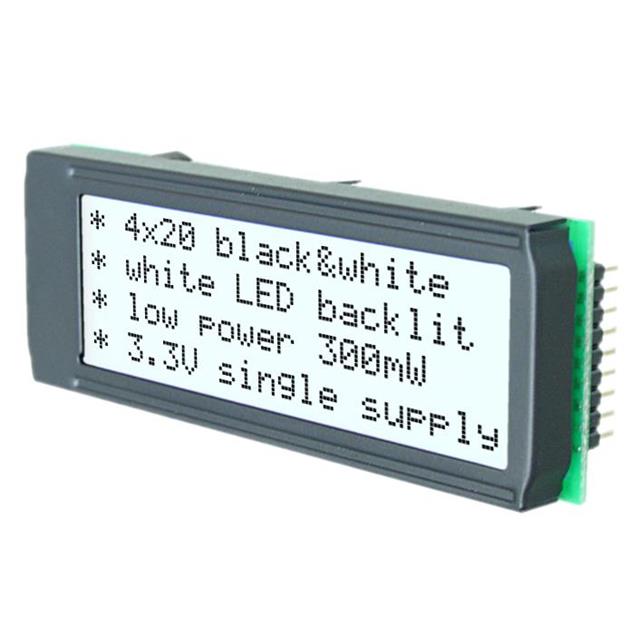

EA DIP205J-4NLW

Active

Display Visions

LCD MOD 80DIG 20X4 TRANSMISV WHT

Deep-Dive with AI

Search across all available documentation for this part.

EA DIP205J-4NLW

Active

Display Visions

LCD MOD 80DIG 20X4 TRANSMISV WHT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EA DIP205J-4NLW

Background Color	White
Backlight	LED - Yellow/Green, LED - Black/White, LED - Blue/White
Character Format	w/Cursor
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Controller Type	SSD1803
Display Format [x]	20
Display Format [y]	4
Display Type	LCD - Color
Dot Size [x]	0.43 mm
Dot Size [y]	0.44 mm
Number of Characters	80
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	75 mm
Outline L x W x H [y]	26.8 mm
Outline L x W x H [z]	13.8 mm
Text Color	Black
Viewing Area [x]	61 mm
Viewing Area [y]	19 mm
Voltage - Supply	3.3 V

EA DIP205 Series

LCD MOD 80DIG 20X4 TRANSMISV WHT

Part	Voltage - Supply	Display Type	Display Format [y]	Display Format [x]	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Character Format [x]	Character Format	Character Format [y]	Number of Characters	Text Color	Background Color	Backlight	Controller Type	Operating Temperature [Min]	Operating Temperature [Max]	Dot Size [y]	Dot Size [x]
Display Visions EA DIP205J-4NLW	3.3 V	LCD - Color	4	20	19 mm	61 mm	13.8 mm	26.8 mm	75 mm	5 Dots	w/Cursor	8 Dots	80	Black	White	LED - Black/White, LED - Blue/White, LED - Yellow/Green	SSD1803	-20 C	70 °C	0.44 mm	0.43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.68
		10	$ 31.00
		100	$ 29.45

Description

General part information

EA DIP205 Series

Character Display Module 5 x 8 Dots w/Cursor LCD - Color LED - Yellow/Green, LED - Black/White, LED - Blue/White 4/8-Bit, Parallel, Serial, SPI 75.00mm x 26.80mm x 13.80mm

Documents

Technical documentation and resources

No documents available
