Description
General part information

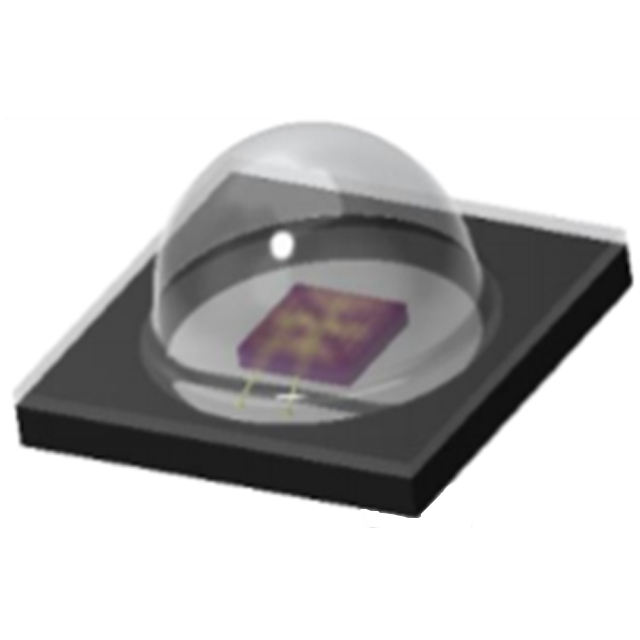

PLBT3838H-WCIR94
Infrared (IR) Emitter 940nm 1.6V 1A 80° 1515 (3838 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | PLBT3838H-WCIR94 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 1515 (3838 Metric) |
| Type | Infrared (IR) |
| Viewing Angle | 80 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 940 nm |
