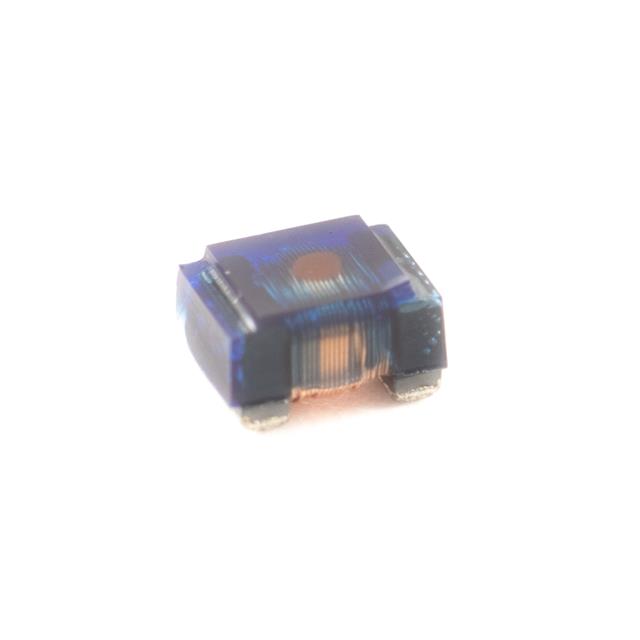

LD05-101M-RC
100 µH Unshielded Wirewound Inductor 9Ohm Max 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LD05-101M-RC |
|---|---|
| Current - Saturation (Isat) | 0.07 mA |
| DC Resistance (DCR) (Max) | 9 Ohm |
| Frequency - Self Resonant | 9 MHz |
| Height - Seated (Max) | 0.06 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Q | 18 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.094 in |
| Size / Dimension Width | 0.068 in |
| Tolerance | 20 % |
| Type | Wirewound |
