Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1412801 | STANDARD Series |
|---|---|---|
| Connector Type | Hood | Hood, Hood - Coupling |
| Features | Salt Water Resistant | Salt Water Resistant, Cable to Cable, Cover |
| Housing Color | - | Black, Gray |
| Housing Material | Die Cast, Aluminum | Die Cast, Aluminum, Polyamide (PA), Nylon |
| Ingress Protection | IP69K, IP67, IP66 | IP66/IP69K - Dust Tight, Water Resistant, Waterproof, IP69K, IP67, IP66, IP66/IP67 |
| Lock Location | Locking Clip (2) on Hood | Locking Clip (1) on Base Bottom, Locking Clip (2) on Hood, Locking Clip (1) on Hood Top |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | B24 | B6, B16, D7, B24 |
| Size / Dimension [x] | 4.724 " | 0.953 - 4.724 in |
| Size / Dimension [x] | 120 mm | 24.2 - 120 mm |
| Size / Dimension [y] | 44 mm | 24.2 - 44 mm |
| Size / Dimension [y] | 1.732 in | 0.953 - 1.732 in |
| Size / Dimension [z] | 2.362 " | 2.362 - 2.992 in |
| Size / Dimension [z] | 60 mm | 60 - 76 mm |
| Style | Top Entry | Side Entry, Bottom Entry, Top Entry |
| Thread Size | PG16 | M32, PG21, M20, PG16 |
STANDARD Series
Heavy Duty Power Connectors HC-STA-D07-CHWSCF- 1TGM20-PL-BK
| Part | Size | Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Connector Type | Housing Material | Lock Location | Thread Size | Features | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1412563 | B6 | Side Entry | IP66/IP69K - Dust Tight, Water Resistant, Waterproof | 125 °C | -40 °C | 44 mm | 1.732 in | 60 mm | 72 mm | 2.362 in | 2.835 in | Hood | Aluminum, Die Cast | Locking Clip (1) on Base Bottom | M32 | Salt Water Resistant | |
Phoenix Contact 1412705 | B16 | Side Entry | IP66, IP67, IP69K | 125 °C | -40 °C | 44 mm | 1.732 in | 93.5 mm | 76 mm | 3.681 " | 2.992 in | Hood | Aluminum, Die Cast | Locking Clip (2) on Hood | PG21 | Salt Water Resistant | |
Phoenix Contact 1419261 | D7 | Bottom Entry | IP66 | 125 °C | -40 °C | 24.2 mm | 0.953 in | 24.2 mm | 76 mm | 0.953 in | 2.992 in | Hood - Coupling | Polyamide (PA), Nylon | Locking Clip (1) on Hood Top | M20 | Cable to Cable, Cover | Black |

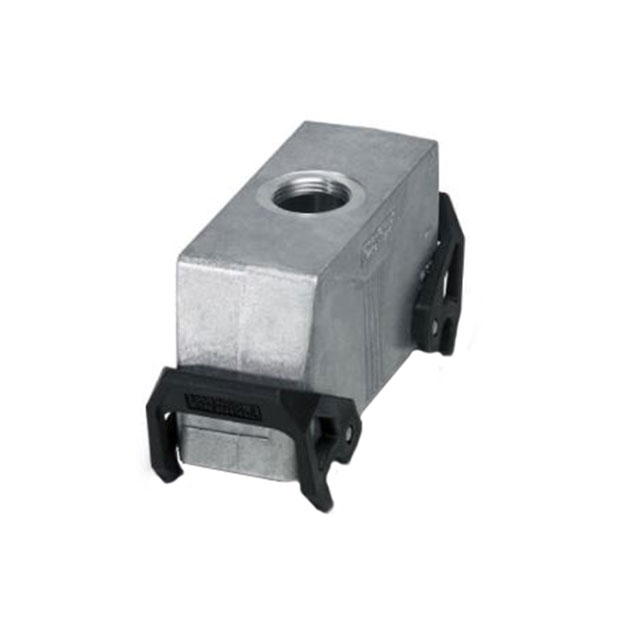

Phoenix Contact 1412801 | B24 | Top Entry | IP66, IP67, IP69K | 125 °C | -40 °C | 44 mm | 1.732 in | 120 mm | 60 mm | 4.724 " | 2.362 " | Hood | Aluminum, Die Cast | Locking Clip (2) on Hood | PG16 | Salt Water Resistant | |
Phoenix Contact 1419246 | D7 | Bottom Entry | IP66/IP67 | 125 °C | -40 °C | 24.2 mm | 0.953 in | 24.2 mm | 60.5 mm | 0.953 in | 2.382 " | Hood - Coupling | Aluminum, Die Cast | Locking Clip (1) on Hood Top | M20 | Gray |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STANDARD Series
Heavy Duty Power Connectors HC-STA-D07-CHWSCF- 1TGM20-PL-BK
Documents
Technical documentation and resources
