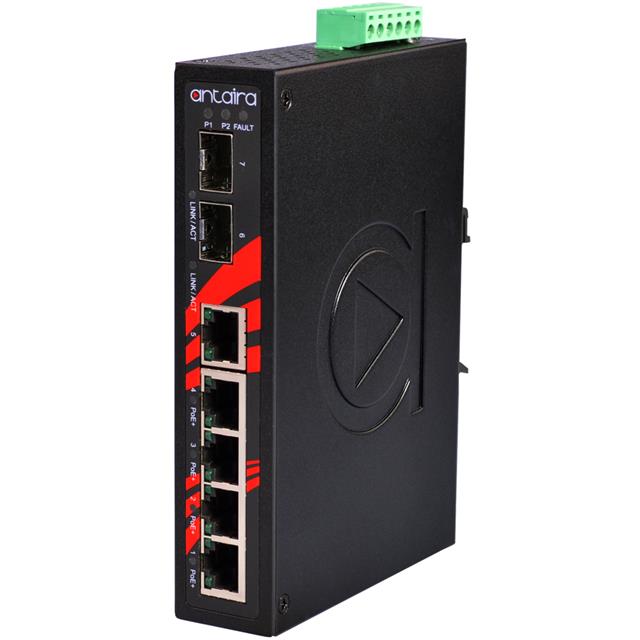

LNP-0702C-SFP
ActiveICOMTECH, INC.
7-PORT INDUSTRIAL POE+ UNMANAGED
LNP-0702C-SFP
ActiveICOMTECH, INC.
7-PORT INDUSTRIAL POE+ UNMANAGED
Description
General part information
LNP-0702C-SFP
Network Switch - Unmanaged 7 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | LNP-0702C-SFP |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 5 |
| Copper Type | 10/100 |
| Fiber Ports | 2 |
| Fiber Type | SFP |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 7 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| PoE Ports | 4 |
| SFP/XFP Ports (Count) | 2 |
| SFP/XFP Type | SFP |
| Type | Switch - Unmanaged |
| Voltage - Input (Maximum) | 55 V |
| Voltage - Input (Minimum) | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
