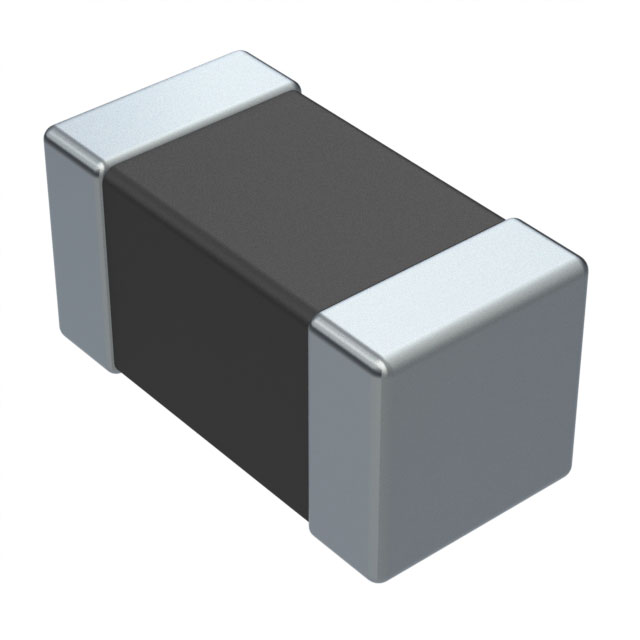

MZAS1005G121-R80TF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FERRITE BEAD 120 OHM 0402 1LN
MZAS1005G121-R80TF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FERRITE BEAD 120 OHM 0402 1LN
Description
General part information
MZAS1005G121-R80TF
120 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 800mA 300mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | MZAS1005G121-R80TF |
|---|---|
| Current Rating (Max) | 800 mA |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.026 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
