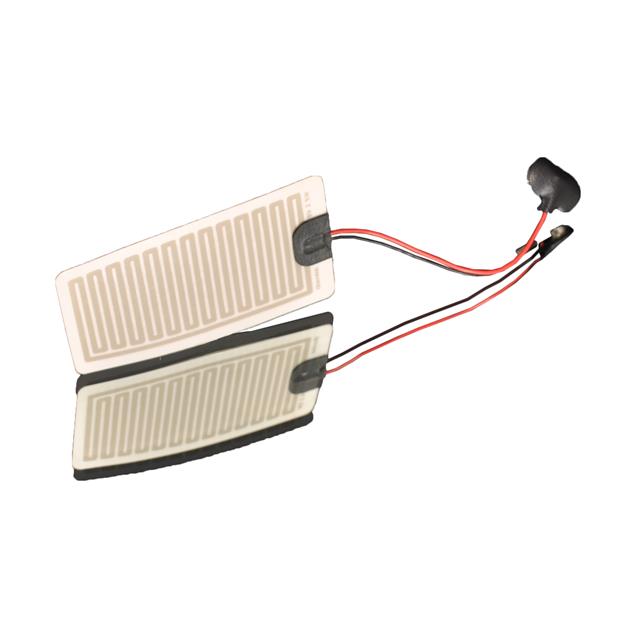

DK0608PA

Active

Thermo Heating Elements

6.0 X 8.0 IN. POLYMER THICK FILM

Search across all available documentation for this part.

Active

Thermo Heating Elements

6.0 X 8.0 IN. POLYMER THICK FILM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DK0608PA	DK0608 Series

Attachment Method	Pressure Sensitive Adhesive (PSA)	Pressure Sensitive Adhesive (PSA)
Color	Black	Black
Length	152.4 mm	152.4 mm
Length	6 in	6 in
Length - Lead Wire [x]	12 in	12 in
Length - Lead Wire [x]	304.8 mm	304.8 mm
Material	Polyester	Silicone Rubber, Polyester
Material - Insulation	Polyvinyl Chloride (PVC)	Polytetrafluoroethylene (PTFE), Polyvinyl Chloride (PVC)
Power (Watts)	24 W	24 - 92 W
Resistance	6 Ohms	6 - 6.26 Ohms
Shape	Rectangular	Rectangular
Temperature Rating	239 °F	239 - 428 °F
Temperature Rating	115 °C	115 - 220 °C
Termination	Wire Leads	Wire Leads
Type	Flexible Heater, Printed	Flexible Heater, Printed
Watt Density @ 12V	500 mW/in²	2 - 500 W/in²
Width [x]	8 in	8 in
Width [x]	203.2 mm	203.2 mm
Wire Gauge	20 AWG	20 AWG

6.0 X 8.0 IN. SILICONE RUBBER HE

Part	Width [x]	Width [x]	Wire Gauge	Shape	Attachment Method	Watt Density @ 12V	Material	Power (Watts)	Temperature Rating	Temperature Rating	Color	Length - Lead Wire [x]	Length - Lead Wire [x]	Resistance	Termination	Length	Length	Material - Insulation	Type
Thermo Heating Elements DK0608SA	8 in	203.2 mm	20 AWG	Rectangular	Pressure Sensitive Adhesive (PSA)	2 W/in²	Silicone Rubber	92 W	428 °F	220 °C	Black	12 in	304.8 mm	6.26 Ohms	Wire Leads	152.4 mm	6 in	Polytetrafluoroethylene (PTFE)
Thermo Heating Elements DK0608PA	8 in	203.2 mm	20 AWG	Rectangular	Pressure Sensitive Adhesive (PSA)	500 mW/in²	Polyester	24 W	239 °F	115 °C	Black	12 in	304.8 mm	6 Ohms	Wire Leads	152.4 mm	6 in	Polyvinyl Chloride (PVC)	Flexible Heater, Printed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 105.95

General part information

6.0 X 8.0 IN. POLYMER THICK FILM

Technical documentation and resources

No documents available
