EGC.0B.304.CYM
ActiveLEMO

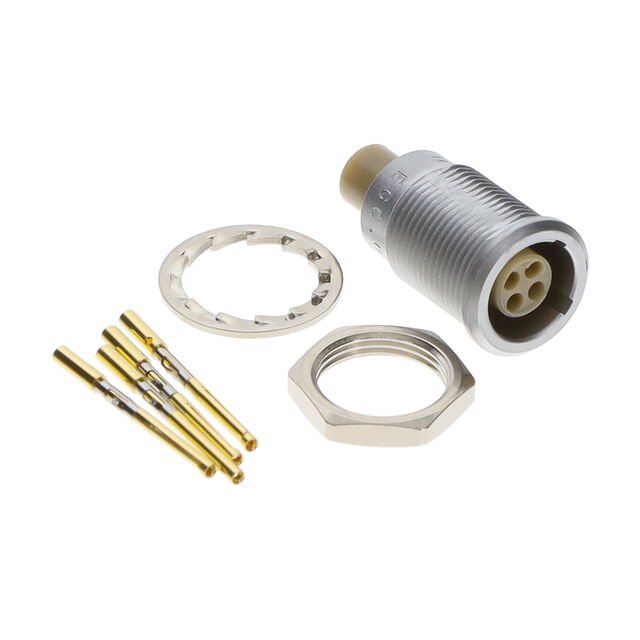

CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGC.0B.304.CYM
ActiveLEMO
CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGC.0B.304.CYM | EGC.0B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 2 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 4 | 2 - 9 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | C | C |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 302 - 309 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
EGC.0B Series
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Current Rating (Amps) | Contact Material | Orientation | Mounting Feature | Number of Positions | Insert Material | Fastening Type | Primary Material | Shell Size - Insert | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Material Flammability Rating | Ingress Protection | Contact Finish - Mating | Connector Type | Shielding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGC.0B.304.CLL | 7 A | Bronze | C | Bulkhead - Rear Side Nut | 4 | Polyetheretherketone (PEEK) | Push-Pull | Metal | 304 | Brass | -55 °C | 250 °C | Silver | 59 Áin | 1.5 Ám | Chrome | UL94 V-0 | IP50 | Gold | Receptacle, Female Sockets | Shielded | |
LEMO EGC.0B.302.CLL | 10 A | Bronze | C | Bulkhead - Rear Side Nut | 2 | Polyetheretherketone (PEEK) | Push-Pull | Metal | 302 | Brass | -55 °C | 250 °C | Silver | 59 Áin | 1.5 Ám | Chrome | UL94 V-0 | IP50 | Gold | Receptacle, Female Sockets | Shielded | |
LEMO EGC.0B.309.CLL | 2 A | Bronze | C | Bulkhead - Rear Side Nut | 9 | Polyetheretherketone (PEEK) | Push-Pull | Metal | 309 | Brass | -55 °C | 250 °C | Silver | 59 Áin | 1.5 Ám | Chrome | UL94 V-0 | IP50 | Gold | Receptacle, Female Sockets | Shielded | |
LEMO EGC.0B.304.CYM | 7 A | Bronze | C | Bulkhead - Rear Side Nut | 4 | Polyetheretherketone (PEEK) | Push-Pull | Metal | 304 | Brass | -55 °C | 250 °C | Silver | 59 Áin | 1.5 Ám | Chrome | UL94 V-0 | IP50 | Gold | Receptacle, Female Sockets | Shielded | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.34 | |
| 10 | $ 28.32 | |||
| 25 | $ 27.10 | |||
| 50 | $ 26.22 | |||
| 100 | $ 25.35 | |||
| 250 | $ 23.95 | |||
Description
General part information
EGC.0B Series
4 Position Circular Connector Receptacle, Female Sockets Crimp
