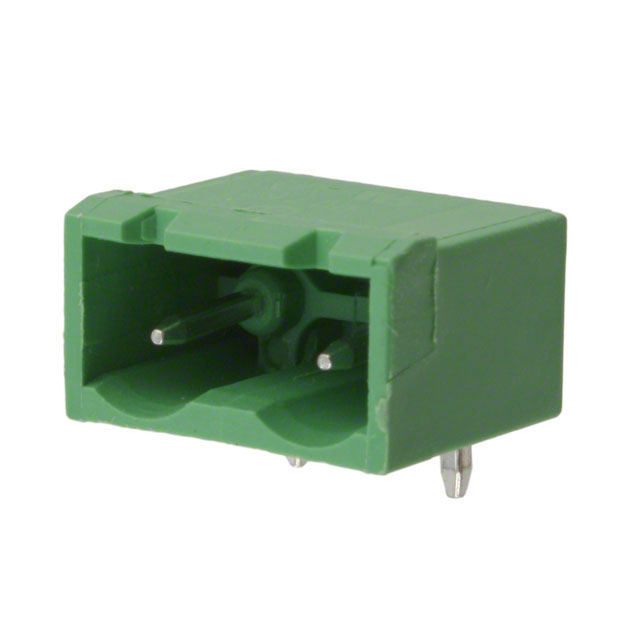

Specification	OSTOQ020151

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Thermoplastic
Insulation Height	0.157 in
Mounting Type	Solder, Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.3 in
Positions Per Level	2
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

OSTOQ02 Series

Part	Number of Levels	Termination Style	Number of Positions	Mounting Type	Header Orientation Angle	Header Orientation	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Type	Voltage - UL	Positions Per Level	Pitch	Contact Tail Length	Housing Material	Insulation Height	Contact Material	Material Flammability Rating	Features
On Shore Technology Inc. OSTOQ025451	1	Solder	2	Solder Through Hole	90 °	Right Angle	Tin	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	300 V	2	5.08 mm	0.157 in	Thermoplastic	0.157 in
On Shore Technology Inc. OSTOQ020051	1	Solder	2	Solder Through Hole	90 °	Right Angle	Tin	-30 °C	105 °C	Header Male Pins Shrouded (2 Side)	300 V	2	0.3 in	0.157 in	Thermoplastic	0.157 in	Brass
On Shore Technology Inc. OSTOQ025450	1	Solder	2	Solder Through Hole		Vertical	Tin	-30 °C	105 °C	Header Male Pins Shrouded (4 Side)	300 V	2	5.08 mm	0.157 in	Thermoplastic	0.472 in	Brass
On Shore Technology Inc. OSTOQ027051	1	Solder	2	Solder Through Hole	90 °	Right Angle	Tin	-30 °C	105 °C	Header Male Pins Shrouded (2 Side)	300 V	2	0.197 in	0.157 in	Thermoplastic	0.157 in	Brass
On Shore Technology Inc. OSTOQ025400	1	Solder	2	Solder Through Hole		Vertical	Tin	-30 °C	105 °C	Header Male Pins Shrouded (4 Side)	300 V	2	5.08 mm	0.157 in	Thermoplastic	0.472 in	Brass
On Shore Technology Inc. OSTOQ021551	1	Solder	2	Solder Through Hole	90 °	Right Angle	Tin	-30 °C	105 °C	Header Male Pins Shrouded (4 Side)	300 V	2	0.138 in	0.138 in	Thermoplastic	0.138 in	Brass	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ027150	1	Solder	2	Solder Through Hole		Vertical	Tin	-30 °C	105 °C	Header Male Pins Shrouded (4 Side)	300 V	2	0.197 in	0.157 in	Thermoplastic	0.157 in	Brass
On Shore Technology Inc. OSTOQ025350	1	Solder	2	Solder Through Hole		Vertical	Tin	-30 °C	105 °C	Header Male Pins Shrouded (2 Side)	300 V	2	5.08 mm	0.157 in	Thermoplastic	0.157 in	Brass
On Shore Technology Inc. OSTOQ021550	1	Solder	2	Solder Through Hole		Vertical	Tin	-30 °C	105 °C	Header Male Pins Shrouded (4 Side)	300 V	2	0.138 in	0.138 in	Thermoplastic	0.138 in	Brass	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ0254511	1	Solder	2	Solder Through Hole	90 °	Right Angle	Tin	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	300 V	2	5.08 mm	0.138 in	Thermoplastic	0.138 in	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

OSTOQ020151 | Datasheet
