967650-2
ActiveTE Connectivity AMP Connectors

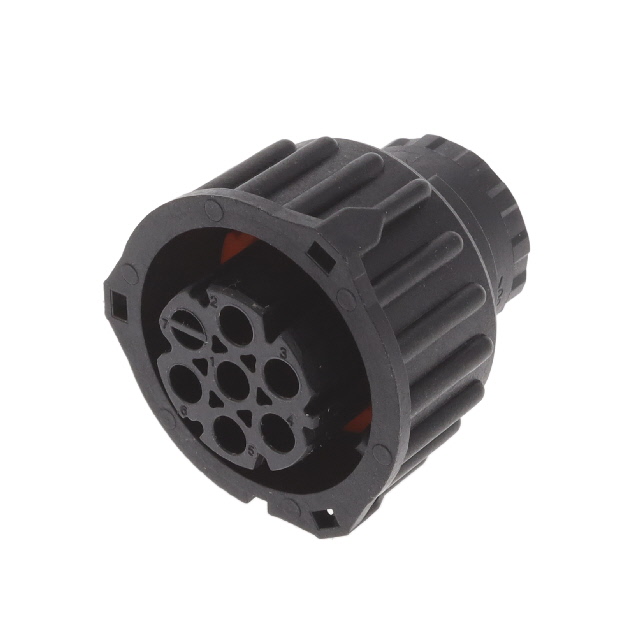

CONN PLUG HSNG FMALE 6POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
967650-2
ActiveTE Connectivity AMP Connectors
CONN PLUG HSNG FMALE 6POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 967650-2 | 967650 Series |
|---|---|---|
| Connector Type | Plug Housing | Plug Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 1.5 mm | 1.5 mm |
| Contact Type | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut | Coupling Nut |
| Housing Color | Black | Black, Gray |
| Ingress Protection | IP69K, IP67 | IP69K - Dust Tight, High Temp Water Jets, Waterproof, IP69K, IP67 |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 - 7 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | B, A |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded | Unshielded |
| Type | For Female Sockets | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.17 | |
| 10 | $ 2.82 | |||
| 25 | $ 2.81 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.51 | |||
| 250 | $ 2.49 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 2.06 | |||
| 2500 | $ 1.90 | |||
967650 Series
CONN PLUG HSNG FMALE 7POS INLINE
| Part | Orientation | Number of Positions | Shielding | Type | Fastening Type | Contact Size | Housing Color | Contact Type | Features | Shell Material | Ingress Protection | Connector Type | Contact Shape | Material Flammability Rating | Mounting Type | Note | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-967650-1 | B | 7 | Unshielded | For Female Sockets | Bayonet Lock | 1.5 mm | Black, Gray | Crimp | Coupling Nut | Polybutylene Terephthalate (PBT), Glass Filled | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Plug Housing | Circular | UL94 HB | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 120 °C |
TE Connectivity AMP Connectors 967650-3 | A | Unshielded | For Female Sockets | Bayonet Lock | 1.5 mm | Black | Crimp | Coupling Nut | Polybutylene Terephthalate (PBT), Glass Filled | IP67, IP69K | Plug Housing | Circular | UL94 HB | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 120 °C | |
TE Connectivity AMP Connectors 967650-2 | A | 6 | Unshielded | For Female Sockets | Bayonet Lock | 1.5 mm | Black | Crimp | Coupling Nut | Polybutylene Terephthalate (PBT), Glass Filled | IP67, IP69K | Plug Housing | Circular | UL94 HB | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 120 °C |
Description
General part information
967650 Series
6 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
