216A-04FF0
ActiveATTEND Technology

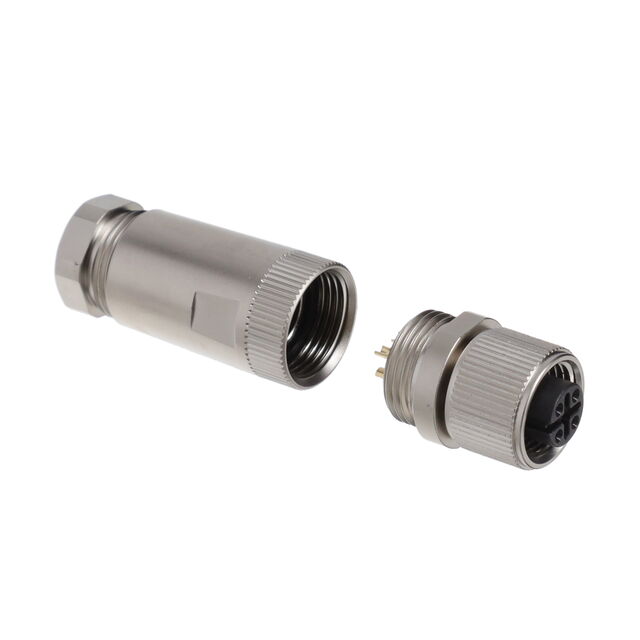

M12 A-CODE PLUG FOR CABLE, 4PIN
216A-04FF0
ActiveATTEND Technology
M12 A-CODE PLUG FOR CABLE, 4PIN
Description
General part information
216A-04FF0
4 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 216A-04FF0 |
|---|---|
| Backshell Material | Aluminum Alloy |
| Cable Opening (Max) | 0.276 in |
| Cable Opening (Min) | 0.197 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection | Waterproof |
| Insert Material | PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Plating | Nickel |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
