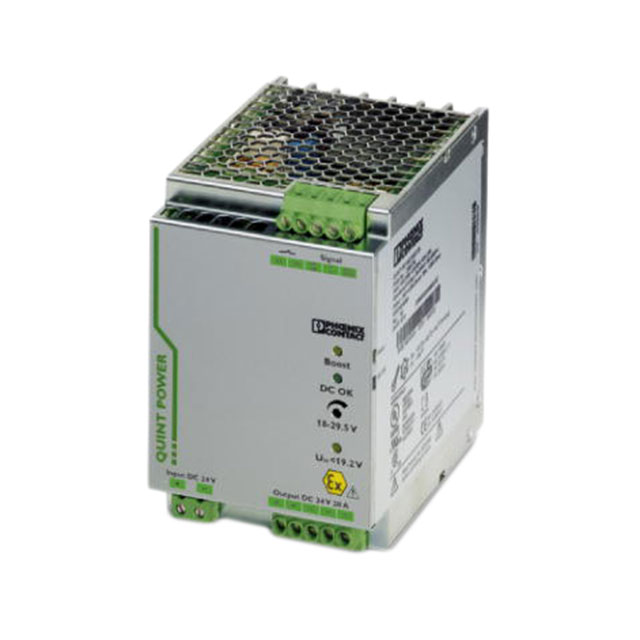

2320568
ObsoletePhoenix Contact
DC/DC DIN RAIL SUPPLY 24V 480W
2320568
ObsoletePhoenix Contact
DC/DC DIN RAIL SUPPLY 24V 480W
Description
General part information
2320568
DC/DC DIN RAIL SUPPLY 24V 480W
Technical Specifications
Parameters and characteristics for this part
| Specification | 2320568 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, cULus, cURus |
| Current - Output (Max) | 20 A |
| DC Voltage - Input (Max) | 32 V |
| DC Voltage - Input (Min) | 18 V |
| Efficiency | 92 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 480 W |
| Size / Dimension Height | 5.12 in |
| Size / Dimension Length | 4.92 in |
| Size / Dimension Width | 3.23 in |
| Voltage - Output 1 | 24 V |
