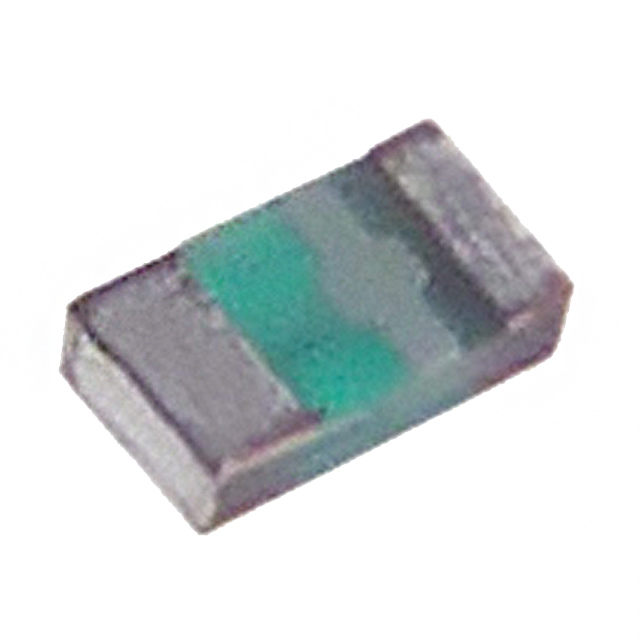

0435.750KR
ActiveLITTELFUSE
FUSE, SURFACE MOUNT, 750 MA, VERY FAST ACTING, 32 VDC, 0402 [1005 METRIC], 435 SERIES
0435.750KR
ActiveLITTELFUSE
FUSE, SURFACE MOUNT, 750 MA, VERY FAST ACTING, 32 VDC, 0402 [1005 METRIC], 435 SERIES
Description
General part information
0435.750KR
750 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0435.750KR |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 35 A |
| Current Rating | 0.75 A |
| DC Cold Resistance | 0.105 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.012 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.013 in |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Voltage Rating - DC | 32 V |
